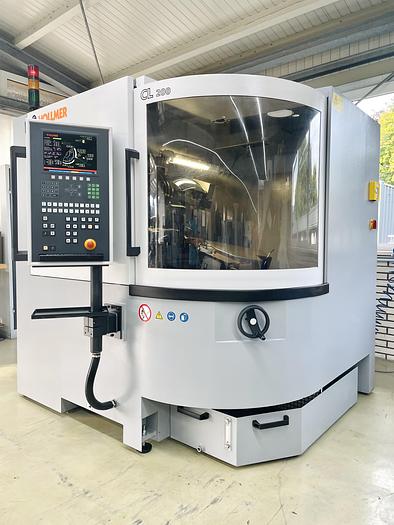

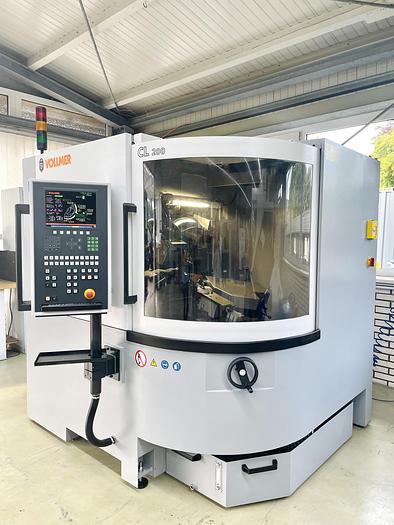

2009 Vollmer CL 200
No longer available
2009 Vollmer CL 200
Description
Suitable to sharpen automatically the face and top on carbide tipped circular saw blades in one
set-up. The complete machining hook angle, clearance angle, top and blade body in one single clamping Accessories:
Total enclosure,
Coolant system,
Automatic fire extinguishing device,
Alphanumeric plug-in keyboard for data management,
Machine light,
Extractor,
Measuring probe,
Specifications
| Manufacturer | Vollmer |
| Model | CL 200 |
| Year | 2009 |
| Condition | Used |
| Stock Number | M02016 |
| Saw diameter | 80-840mm |
| Bore diameter | from 10 mm |
| bore diameter | from 10 mm |
| sheet thickness | <8mm |
| Sheet thickness | <8 mm |
| cutting length | <20mm |
| Tooth pitch | 6 - 120mm |
| Rake angle for hollow breast | -10° to 25° |
| Cutting length | <20 mm |
| clearance angle | 0 - 30° |
| Rake angle with hollow face | -10 ° to 25 ° |
| Clearance angle | 0 - 30 ° |
| Grinding pin diameter hollow face machining | 5 - 8 mm |
| Main spindle drive power variable | 2400 - 5000 rpm, |
| Coolant volume | 150 l |
| Connected load approx. | 5 kVA |
| Dimensions W x D x H approx. | 1725 x 1990 x 1950 mm |
| Weight approx. | 2600 kg |
| colour | RAL 7045 telegray 1 / RAL 7047 telegray 4 |
| Working speed | approx. 12 teeth/min., |
| Grinding wheel diameter | Open area processing 120 - 155 mm |
| Grinding wheel diameter | Open surface machining 120 - 155 mm |
| Mounted point diameter hollow face machining | 5 - 8 mm |
