2003 Walter Helitronic Power Production

Sold

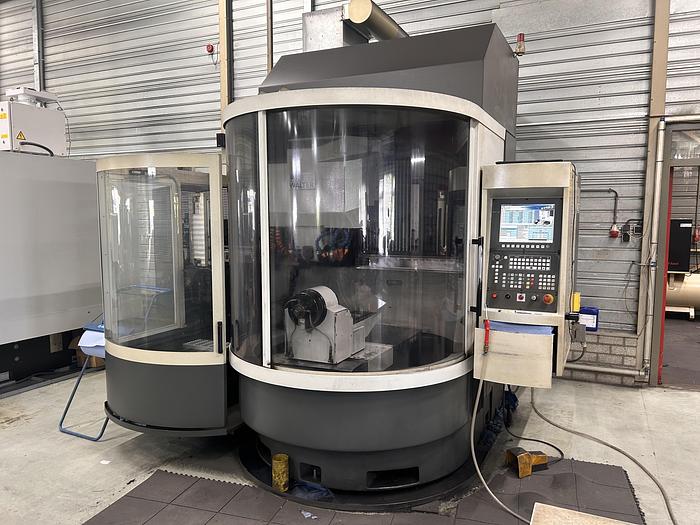

2003 Walter Helitronic Power Production

Description

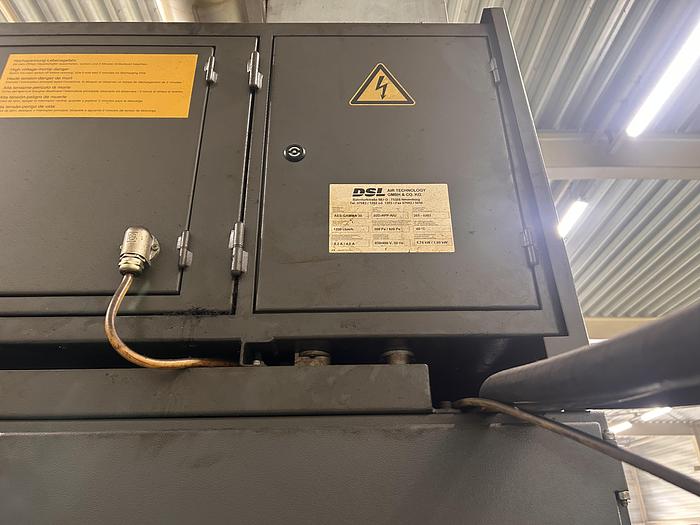

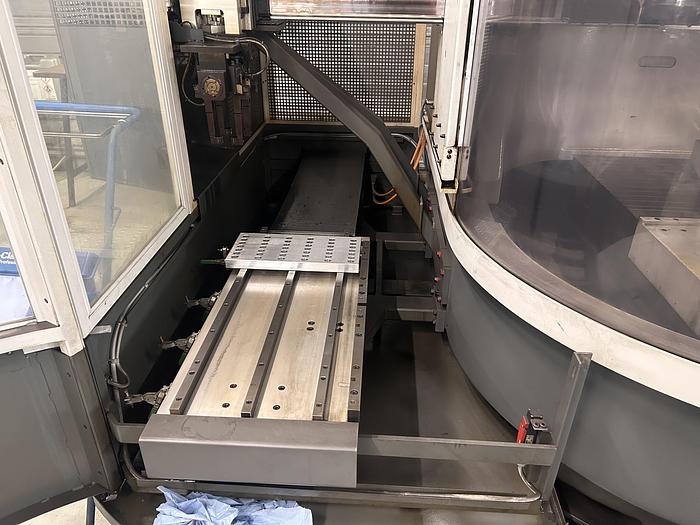

Description: Suitable for regrinding and making new wood and metalworking tools of all kinds. Accessories: Cylindrical pallet loader for tools with Ø 3-32 mm, Software package Toolstudio Standard V 1.7, Software package 1 (cylindrical cutters), Software package 2 (conical-spiral cutters), Software package 3 (drills and step drills), Software package 6 (woodworking tools), Software package 7 (profile tools), Software package 16 (warm-up program), Software package 27 (flexible programming), Software package 32 (contours), Heliflute & Cone chip space calculation program, electrostatic vapor separators, continuous speed control, automatic central lubrication, glass scales on the linear axes, pneumatic workpiece clamping, automatic fire extinguishing device, measuring probe, 6 grinding wheel holders.

Specifications

ManufacturerWalter
ModelHelitronic Power Production
Year2003
ConditionUsed
Stock NumberM02137
X - axis longitudinal movement460 mm
Y-axis vertical movement320 mm
Z-axis transverse movement660 mm
C-axis rotary tableswivel range +/- 200 °
Workpiece holderISO 50
Center height (with / without upper table)145/190 rpm.
center height (with/without top table)145/190 rpm
Max. Workpiece diameter240 mm
max. workpiece length350 mm
Max. Workpiece length350 mm
max. grinding wheel diameter200 mm,
Grinding spindle speed continuously variable0 - 7000 rpm
Max. Grinding wheel diameter200 mm,
Drive power grinding spindle24 kW
massapprox. 4650 kg
Grinding spindle speed stepless0-7000 rpm.
Connected load35 kVA (400 V / 50 Hz)
Dimensions W x D x H3470 x 2930 x 2280 mm
Weightapprox. 4650 kg
colourgray RAL 7035/7043
