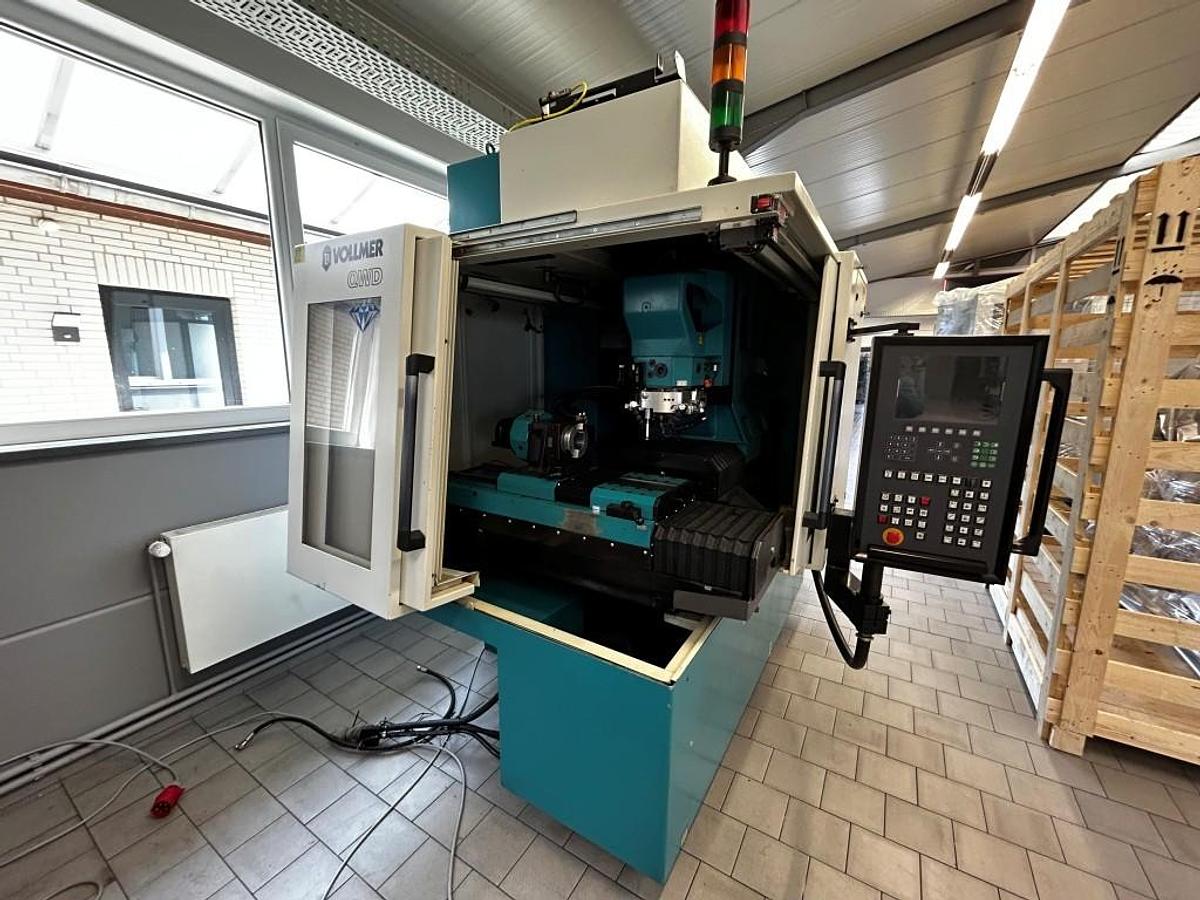

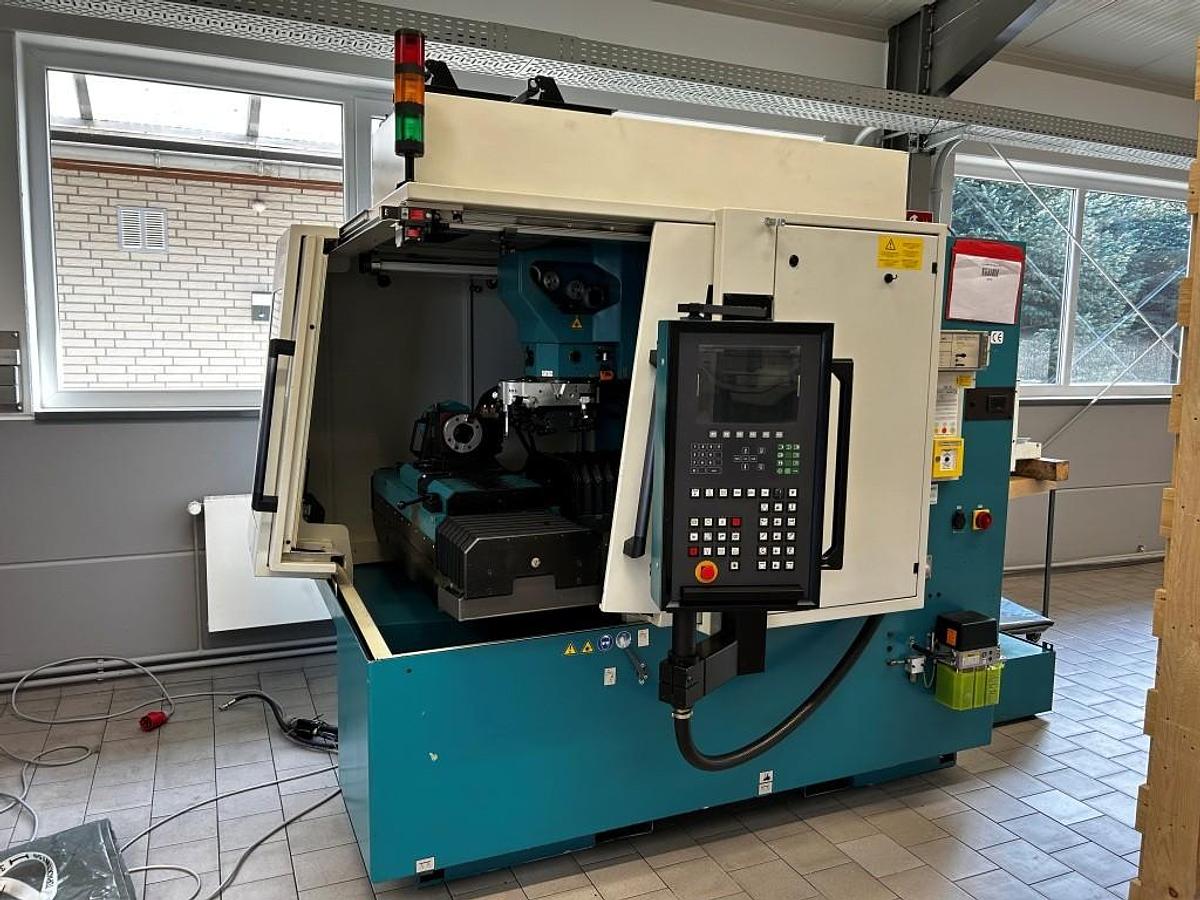

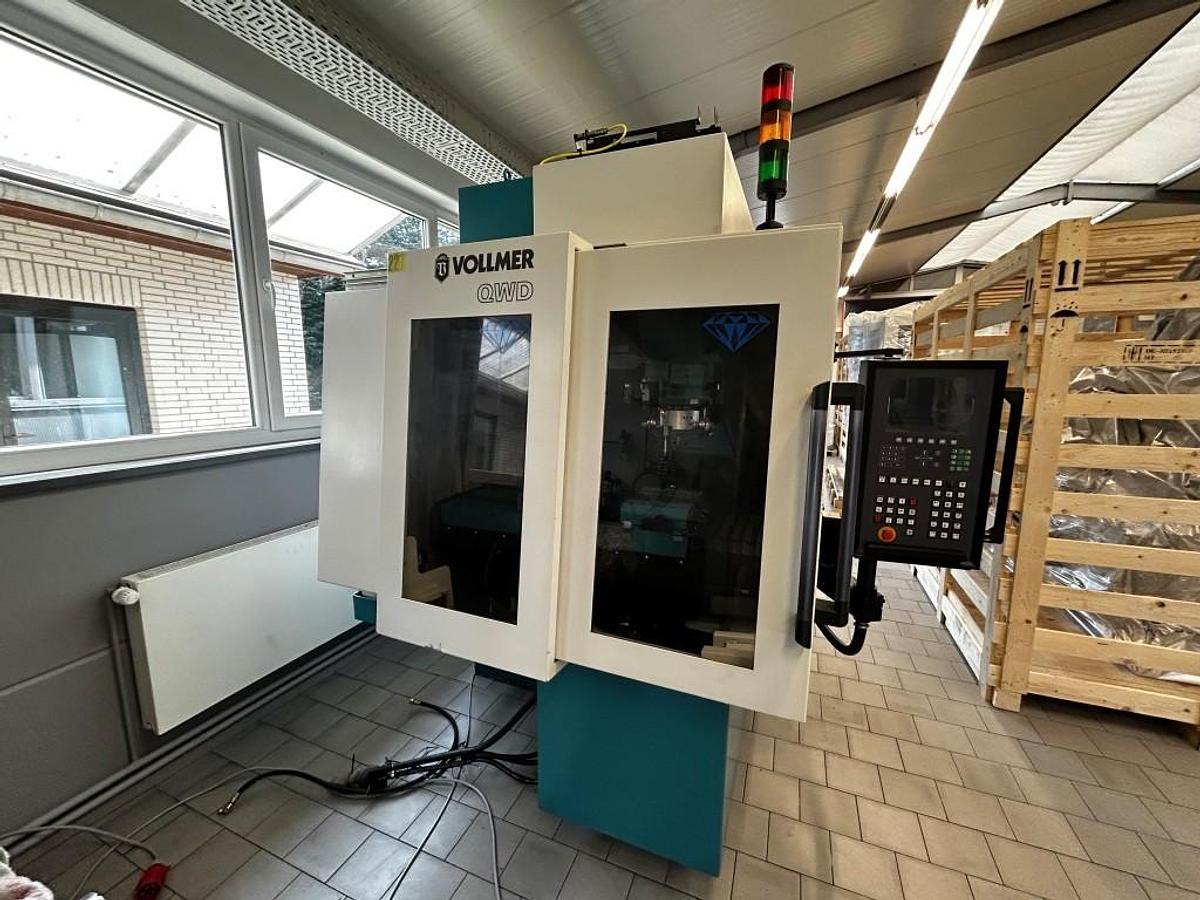

2001 Vollmer QWD 76 P

No longer available

2001 Vollmer QWD 76 P

Description

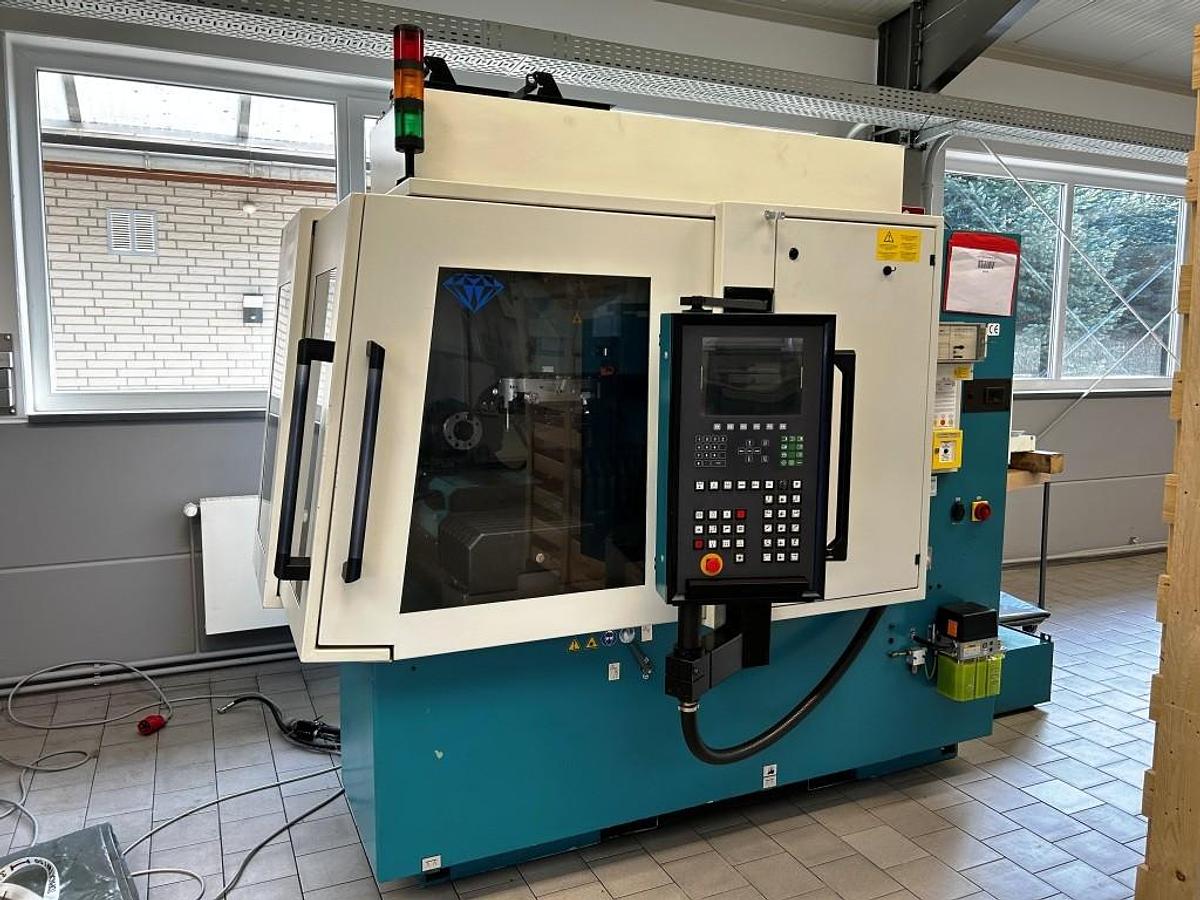

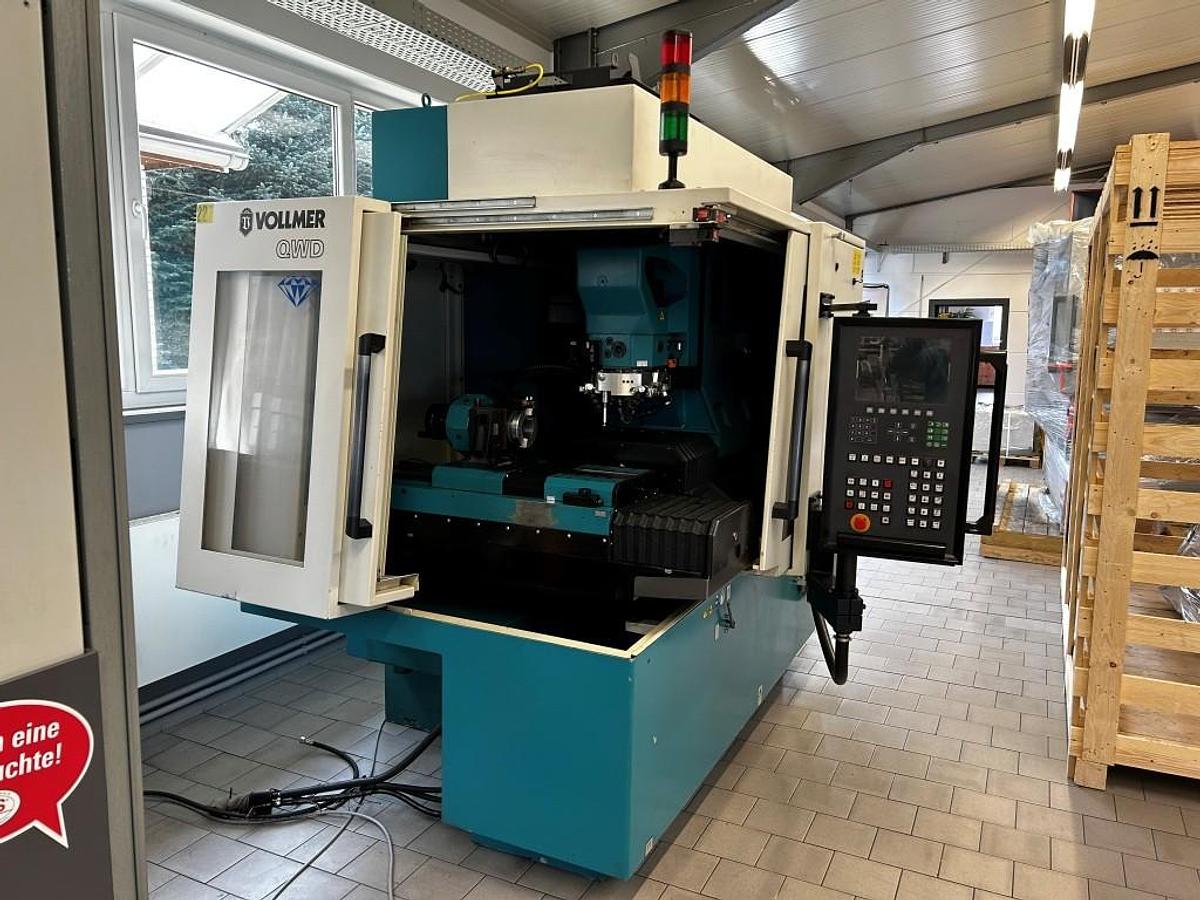

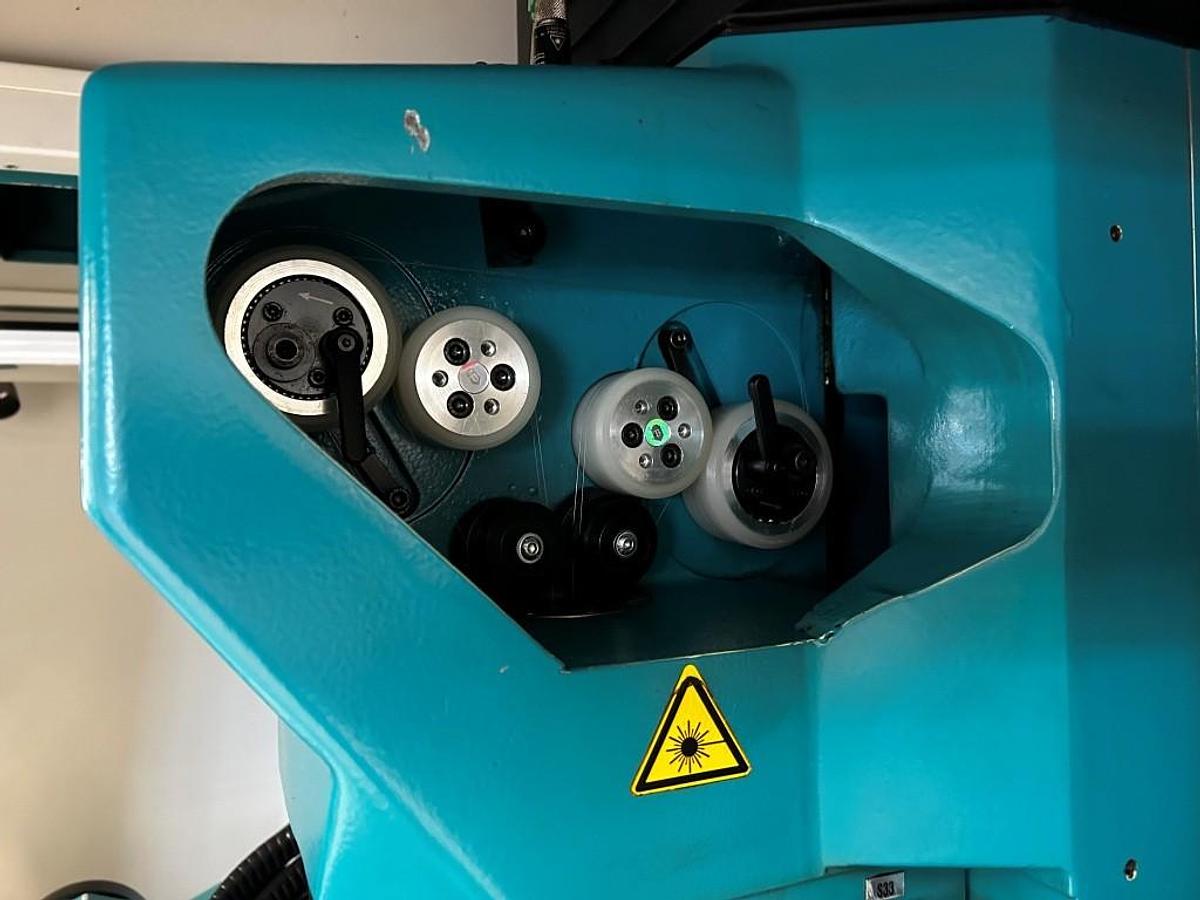

Suitable for automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters, etc. using the wire electro-erosion process. Accesories: Total enclosure,

Mist extractor

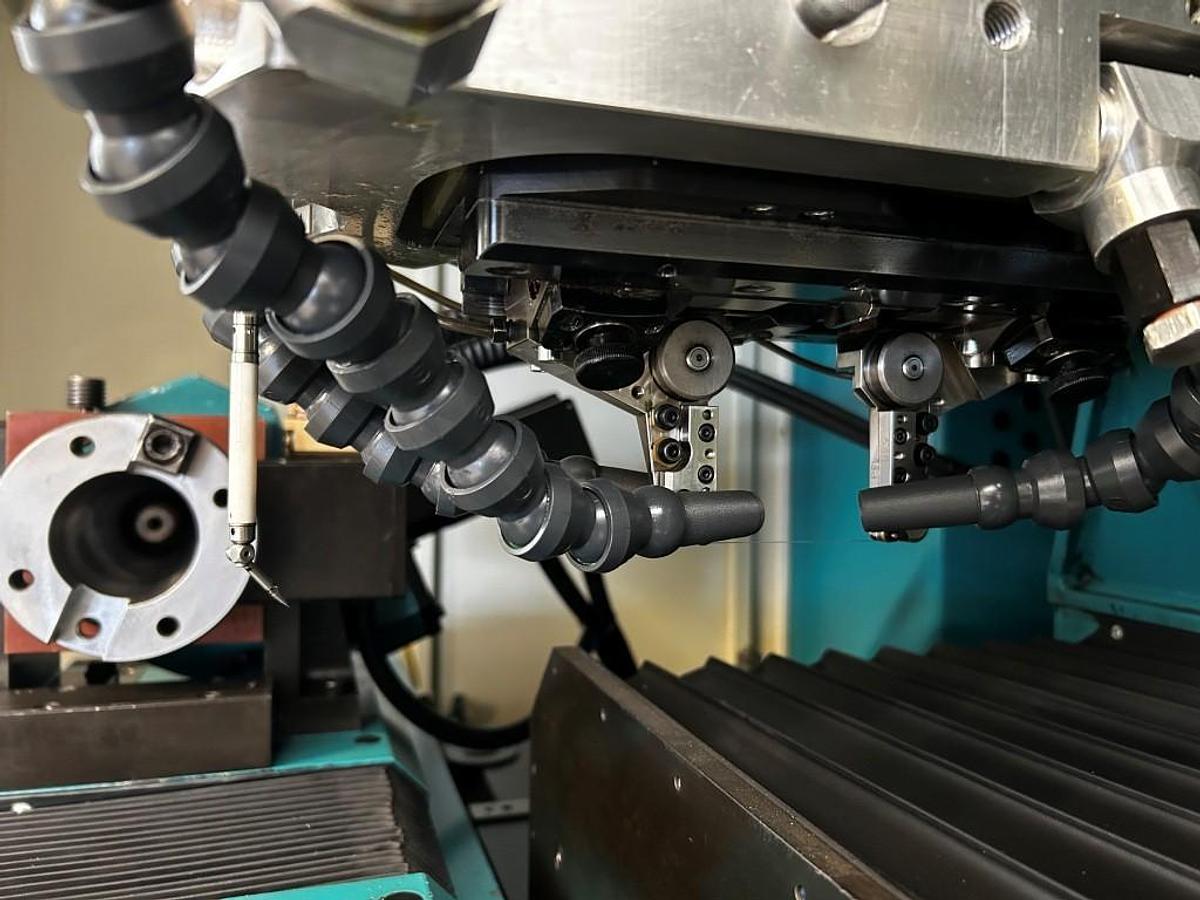

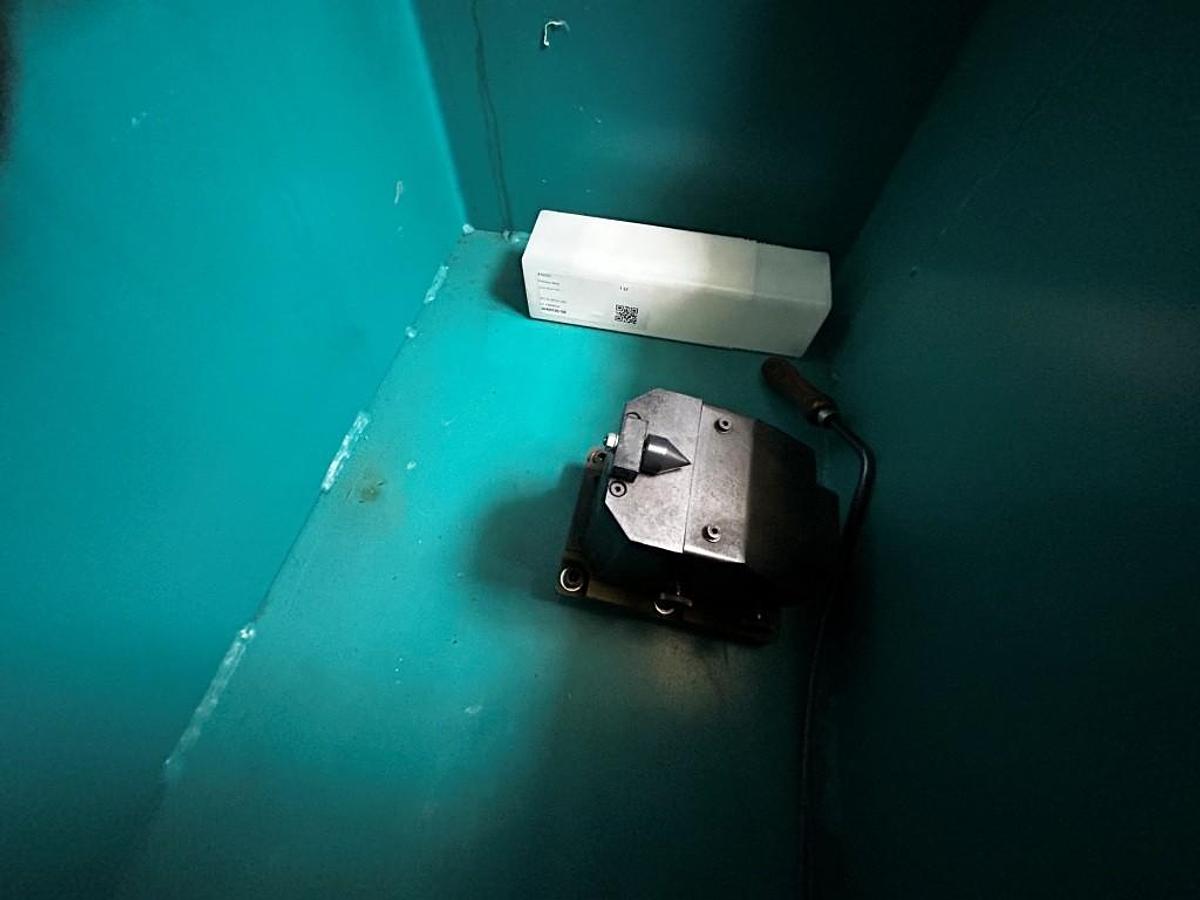

Probe,

Machine lamp,

Automatic central lubrication,

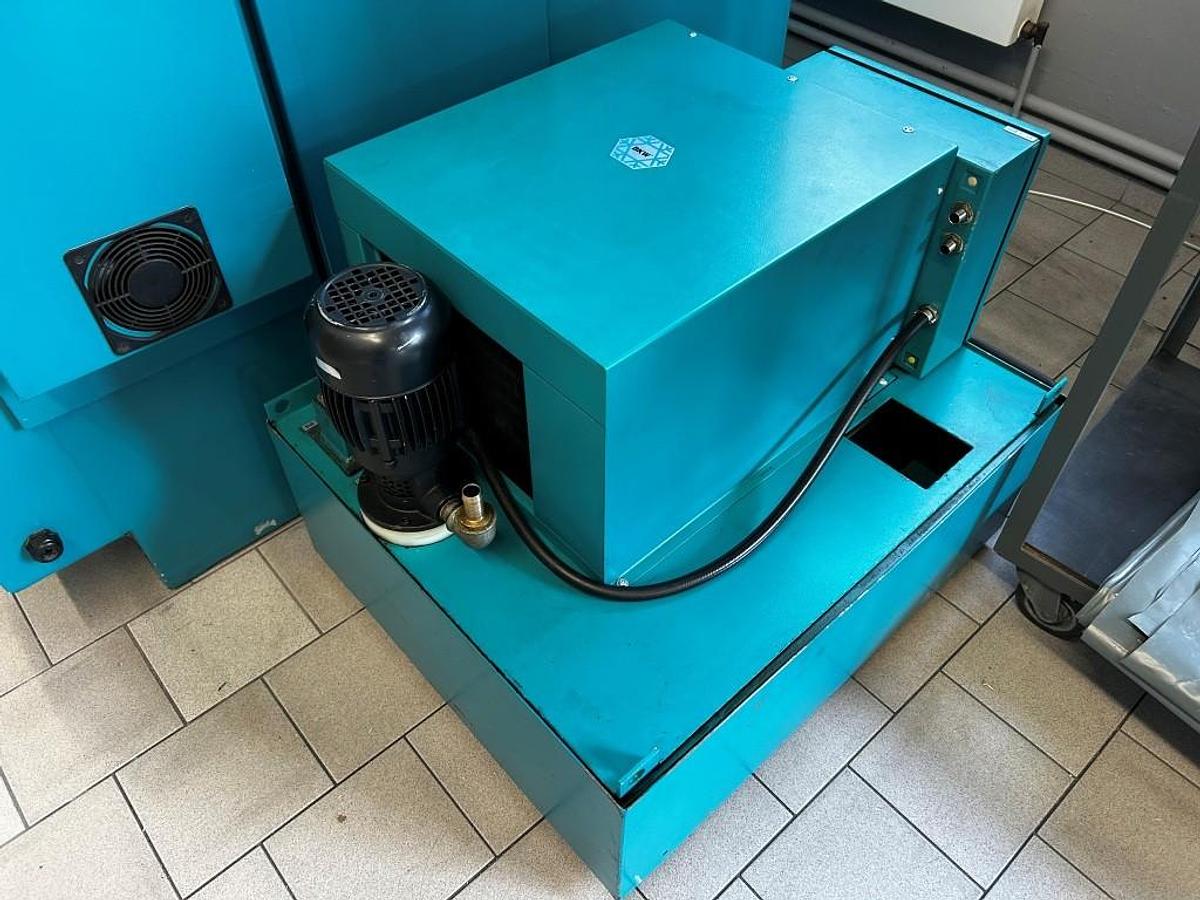

Coolant system dielectric fluid

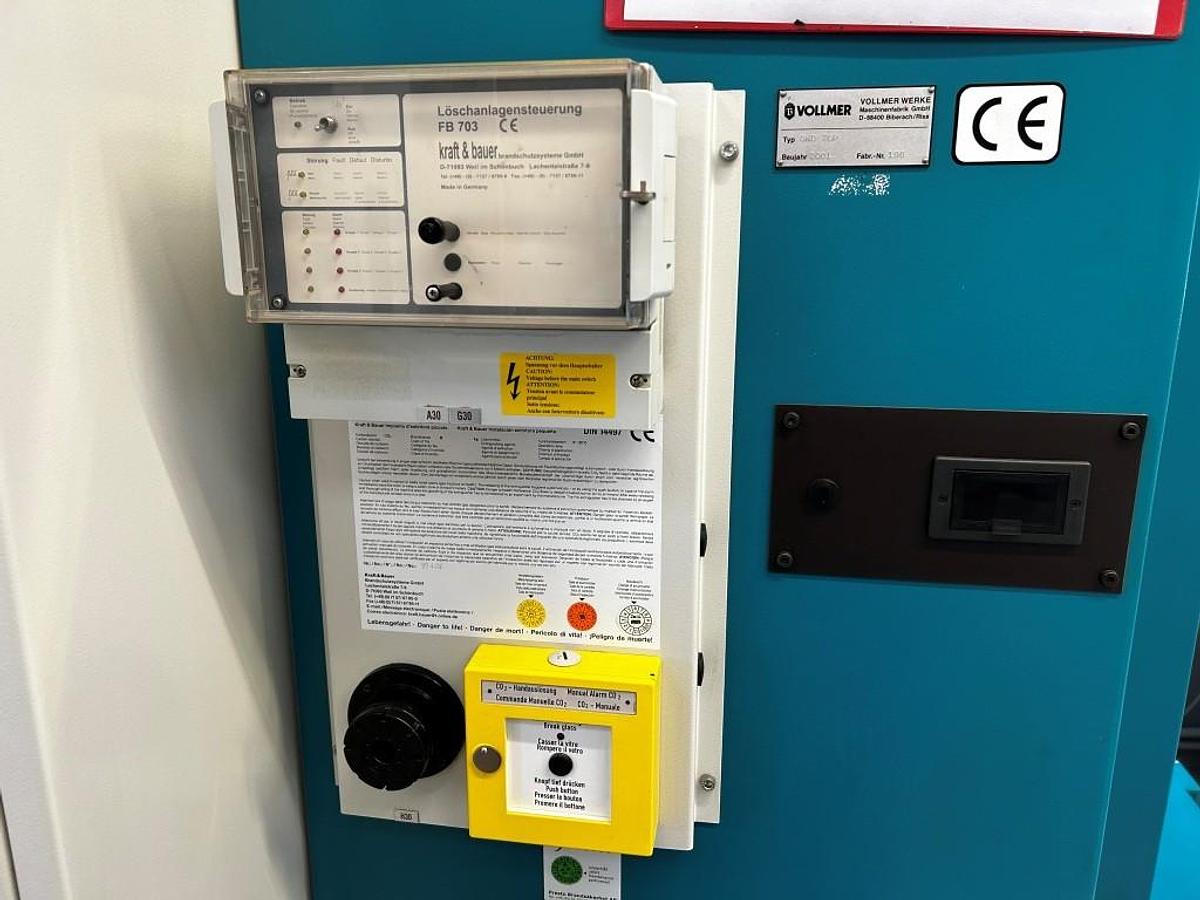

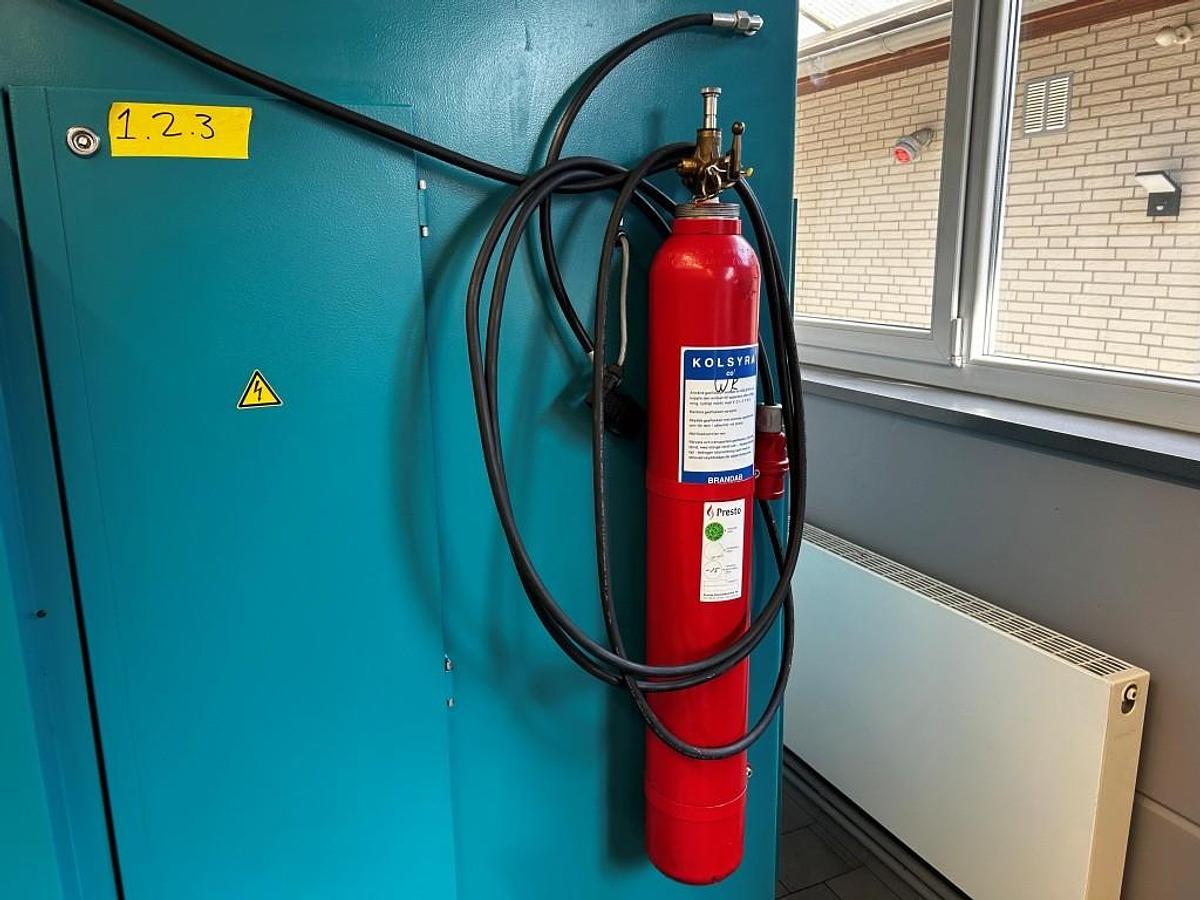

Fire extinguishing system

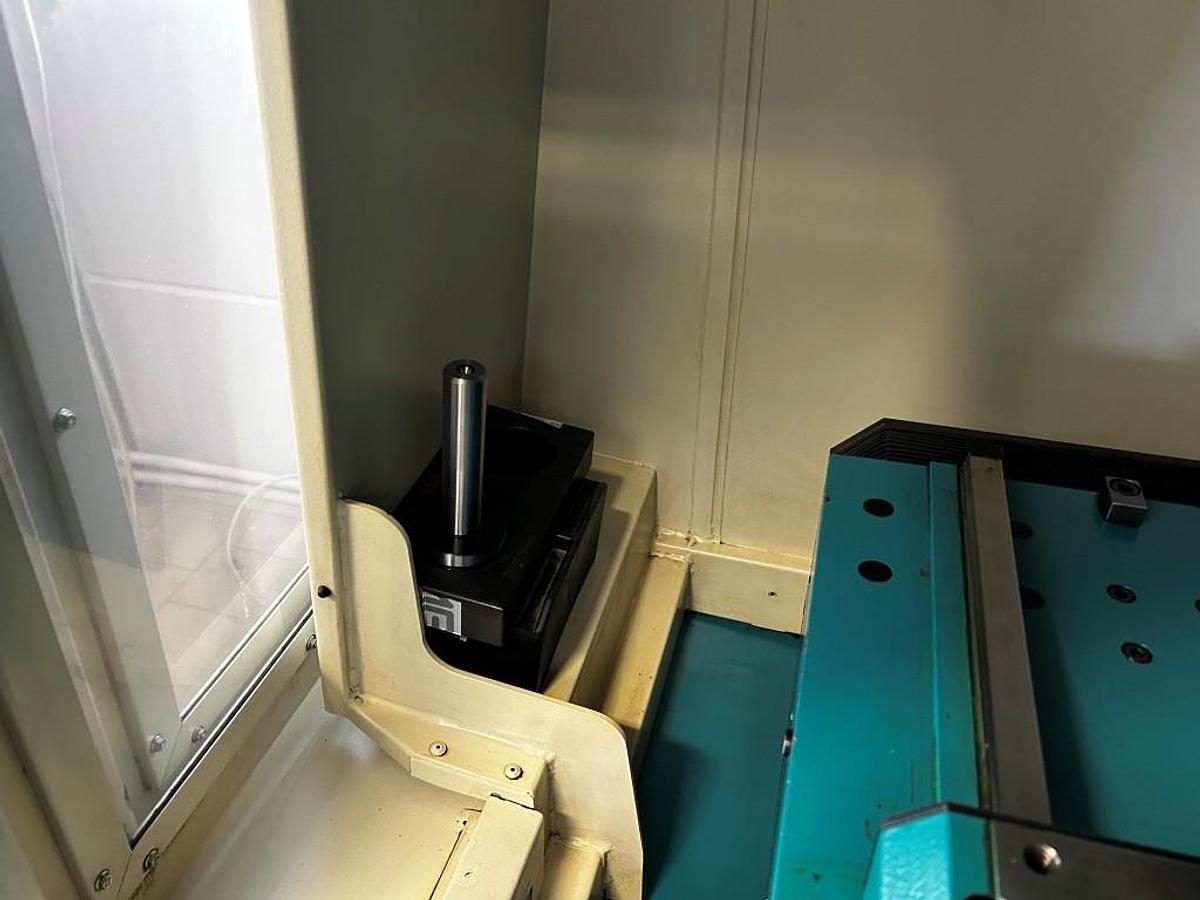

Measuring mandrel

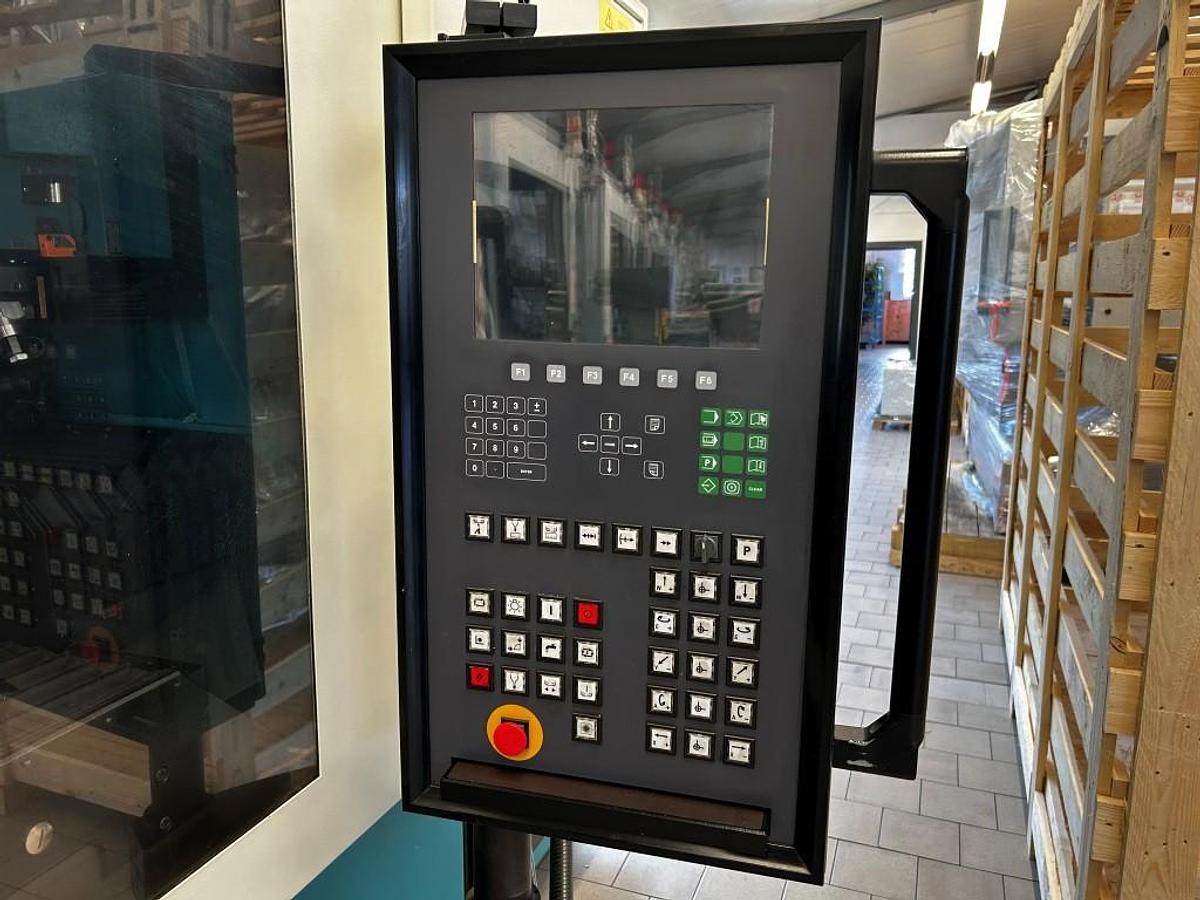

Alphanumeric keyboard

Specifications

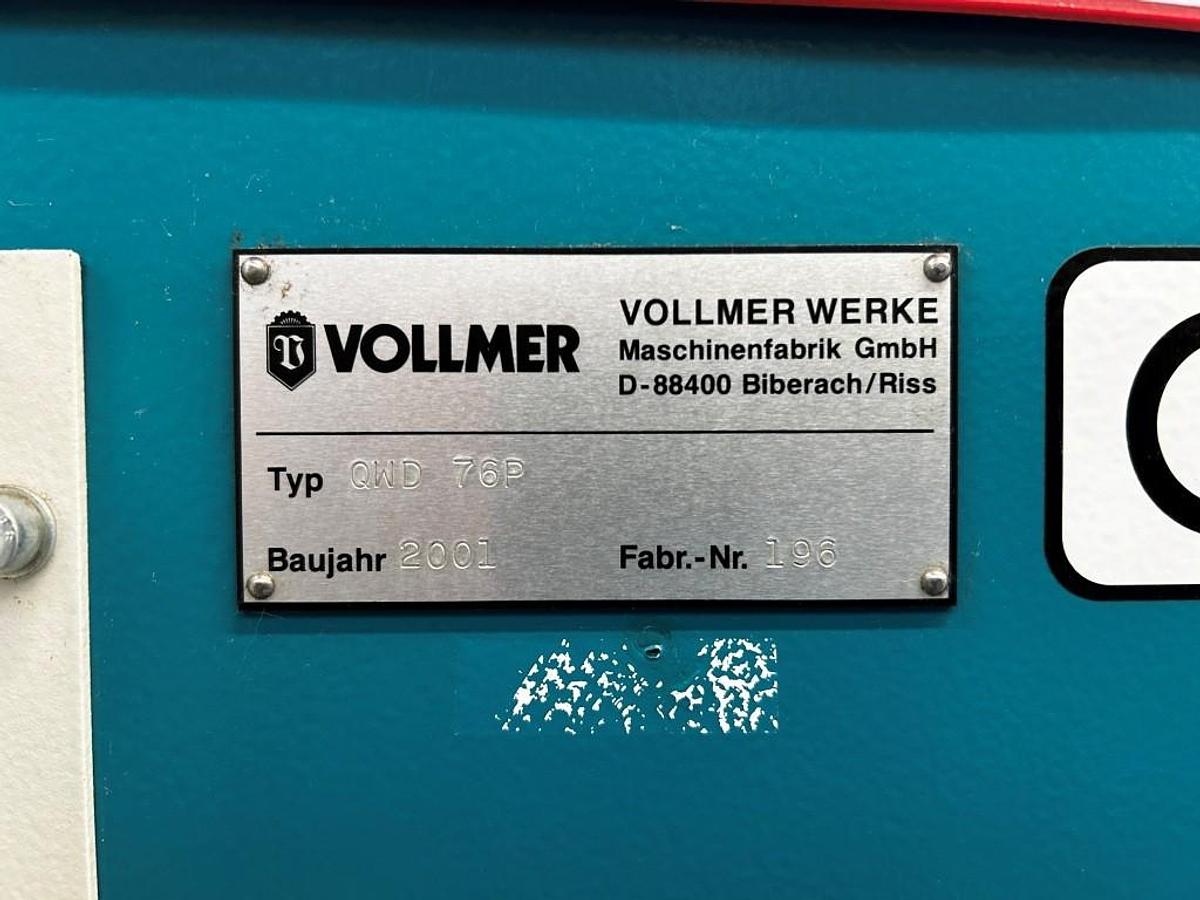

ManufacturerVollmer
ModelQWD 76 P
Year2001
ConditionUsed
Stock NumberM02179
cutter outer diameter max250 mm
cutting length max.200 mm
shank tool diameter10 - 250 mm
cutting length200 mm
Outside diameter of disc-shaped tools max.250 mm
tool weight max.20 kg

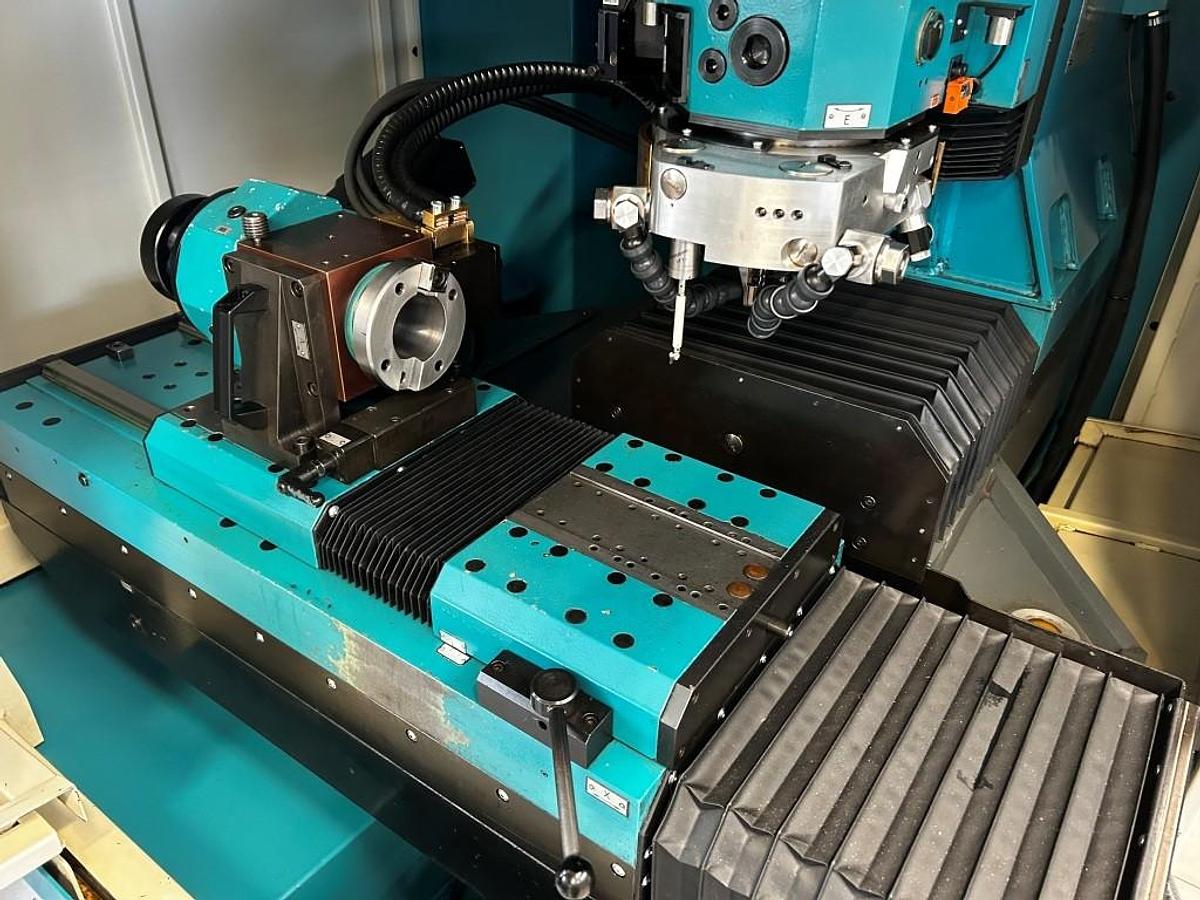

X-axis travel220 mm
Y-axis travel300 mm
W axis travel200 mm
A-axis rotation range60 °
A-axis taperISO 40
E-axis swivel range120 °
number of revolutions80 - 2000 rpm.
Dimensions L x W x H 2235x2630x2130mm
massapprox. 4500 kg
Connected load approx. 400V / 50Hz / 4.5KW
colourturquoise RAL 5021/grey RAL 9002
