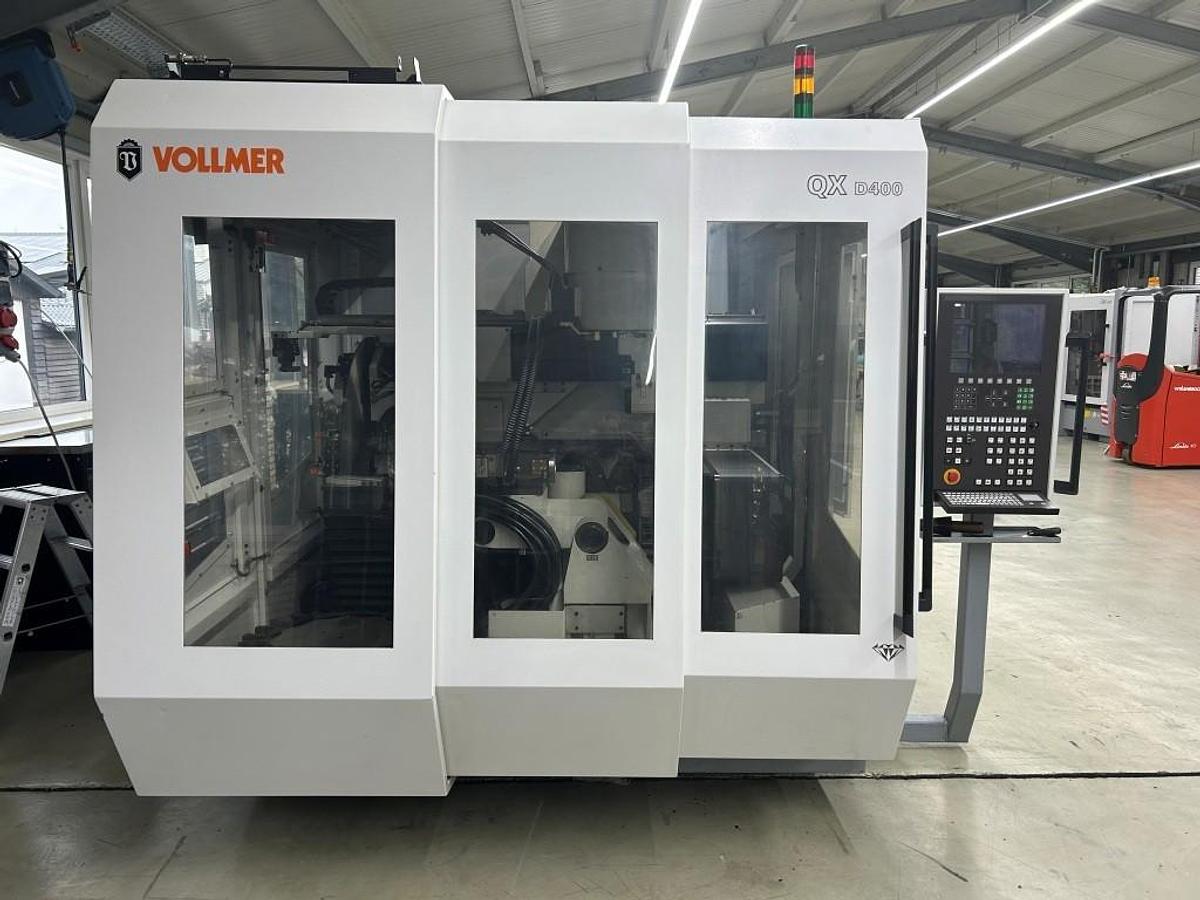

2005 Vollmer QXD 400

CNC-controlled erosion machine for the processing (erosion, grinding, polishing) of PCD tipped tools up to 400 mm diameter and 400 mm length, according to disc-electrical-erosion processes for use in service and in production.

Accessories:

Total enclosure

Software path management

Software P- System for peeling cutters,

Software shaft endmills (207/208)

Software discoid tools face (221/222/223/224)

Software profiled workpieces (233/234/239/240)

Software hoggers, profiled hoggers (255/256/257/258/260/261/262/263)

Software discoid tools (264/265)

Software shaft and jointing cutters (267/268/277/278)

Software step tools (271)

Software scoring saws (299)

Software saws flat tooth (301)

Software saws single sided with chamfer (302/303)

Software saws alternate tooth (304)

Software saws triple chip (309)

Software saws flat top tooth (310)

Software saws flat trapezoid tooth (311)

Software saws alternate tooth with chamfer (312)

Software shaft and jointing cutters (7/8)

Software shaft and jointing cutters profiled (33/34)

Software hoggers, profiled hoggers (53/54/55/56/57/58)

Software discoid tools (64/65)

Software shaft and jointing cutters (67/68/77/78)

Software compensation (90)

Software saws flat tooth (101)

Software saws single sided with chamfer (102/103)

Software saws alternate tooth (104)

Software saws triple chip tooth (109)

Software saws flat top tooth (110)

Software saws triple chip tooth (111)

Software saws alternate tooth with chamfer (112)

Software for polishing of profiled hoggers (757/758/760/761)

Filter system with chiller for dielectric fluid

Automatic fire extinguishing system DIN 14497

Standard programs for measuring, eroding etc.

Program for chamfering of workpiece cutting edges,

Automatic Diagnosis program for machine operational status with text output on screen

Loader for workpieces, with CNC-controlled pivot for loading and unloading to a magazine,

6 sided erosion wheel changer,

Workhead SK 50 with adapter to 12 HSK 63 A,

Turntable workpiece magazine for 12 workpieces SK 50,

Turntable workpiece magazine for 4 workpieces SK 50,

6 flush sets

QXD250 CAD/CAM for external PC workstation including ARES drawing program,

Industrial PC external PC workstation with desktop PC, monitor, keyboard, and mouse,

1 HSK63 F adapter for measuring the machine.
