2019 Vollmer CHF 840
2019 Vollmer CHF 840
or
Call +49447192920
Description

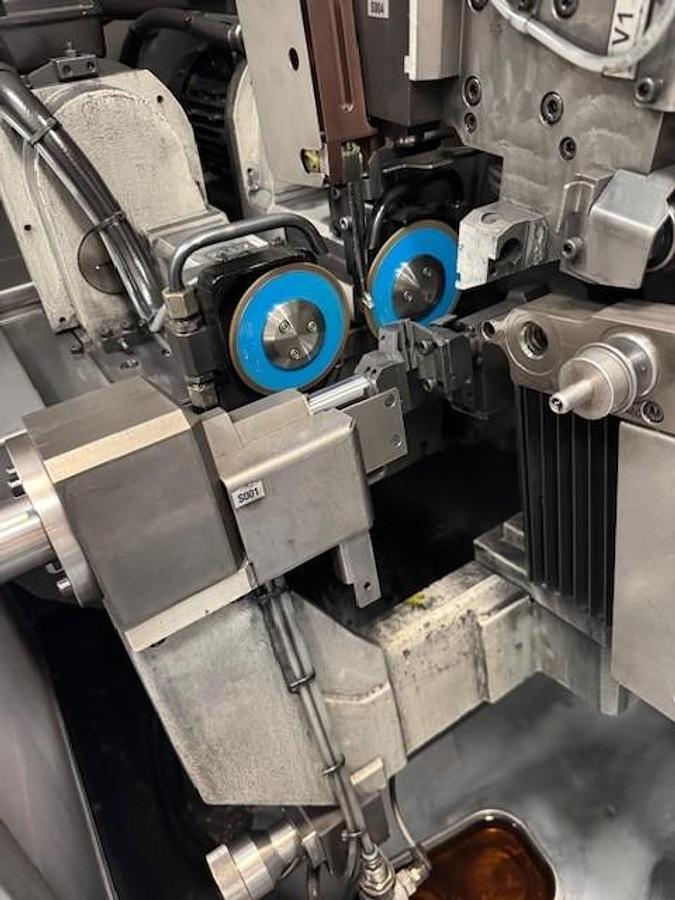

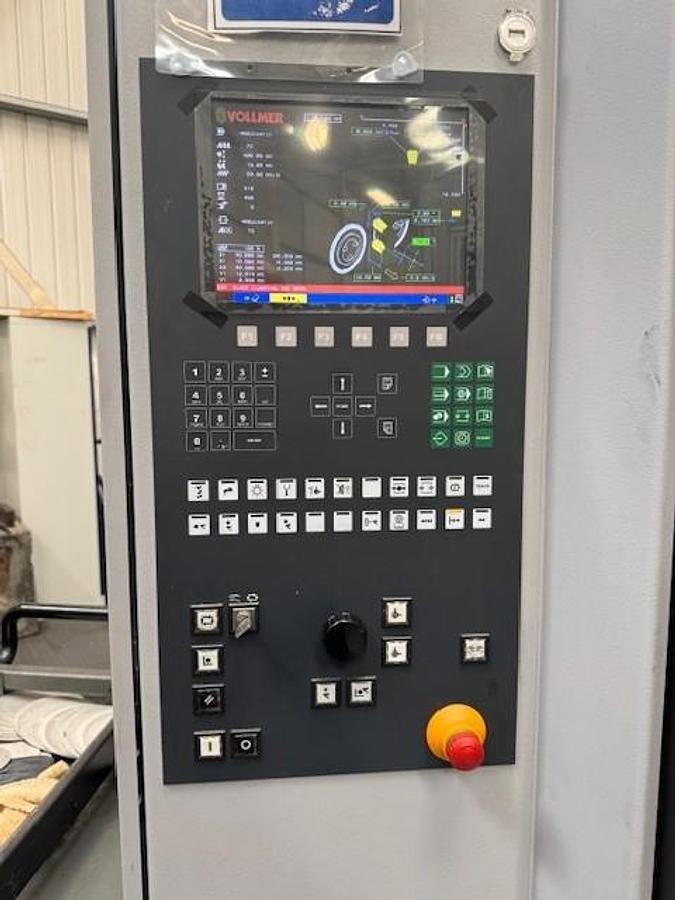

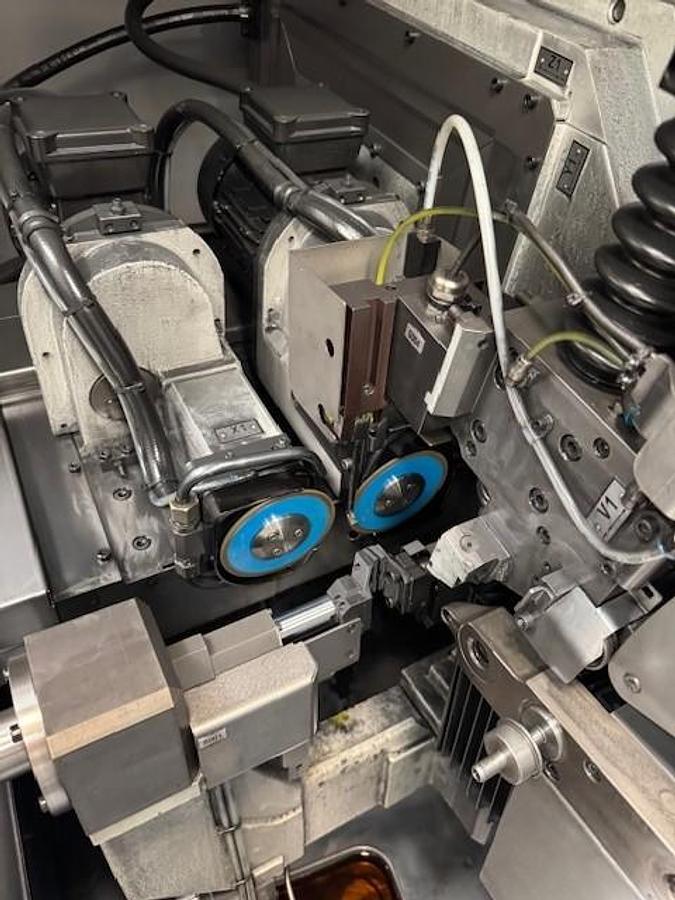

Suitable for simultaneous, automatic grinding of both tooth flanks on carbide-tipped circular saw blades. Accessories (subject to confirmation): Total enclosure, Control panel with LCD color display, Automatic rake angle adjustment, Automatic central lubrication, 1 saw mounting bolts Ø 10 mm, 1 centering ring for bore diameter 30 mm, Standard software package for tooth geometries according to the program overview, Program for grinding sawblades with group teeth and different tooth geometries, Program for newly inserted and broken teeth, Oscillation grinding of tooth flanks Attachments for the N 181 extraction system Automatic fire extinguishing system Prepared for connection to an external coolant purification system
Specifications
| Manufacturer | Vollmer |
| Model | CHF 840 |
| Year | 2019 |
| Condition | Used |
| Stock Number | CHF840 |
| Circular saw blade bore diameter | of 10 mm |
| Tooth pitch | 6 to 180 mm |
| Grinding path | up to 16 mm |
| tangential clearance angle | from 0 to 8 ° |
| sheet thickness | up to 8 mm |
| Radial clearance angle | -10 ° to 6 ° |
| Grinding wheel bore diameter | 32 mm |
| Connection value | 3.7 kVA / 400 V / 50 Hz |
| rake angle | -40 ° to 40 ° |
| Grinding wheel diameter | Max. 100 mm |
| Peripheral speed with grinding wheel | 18 - 27 m / s |
| Dimensions W x D x H approx. | 1900 x 1435 x 1980 mm |
| Weight approx | 1680 kg |
| colour | grey RAL 7045/7047 |
| Circular saw blade diameter | 80 to 840 mm |
