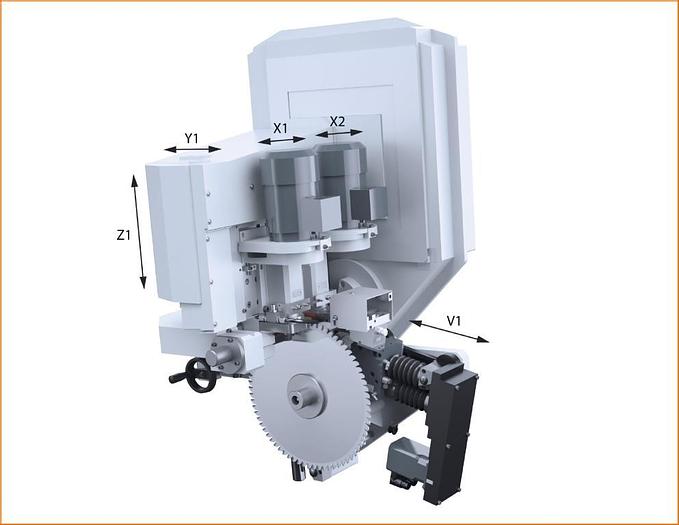

2019 Vollmer CPF 650
Sold
2019 Vollmer CPF 650
Description
Suitable to grind simultaneously and automatically both tooth flanks on carbide tipped circular sawblades.
Accessories:
Total enclosure
Coolant system,
Motorised adjustment of hook and clearance angle
Machine lamp,
1 Sawblade mounting bolt
Prepared for connection to central extractor system.
Specifications
| Manufacturer | Vollmer |
| Model | CPF 650 |
| Year | 2019 |
| Condition | Used |
| Stock Number | M01483 |
| Circular saws outside diameter | 80 to 650 mm |
| Bore diameter | 32 mm |
| Sheet thickness | <5 mm |
| Tooth pitch | 6 to 100 mm |
| Cutting length | <20 mm |
| Rake angle | - 10 ° to + 30 ° |
| Tangential clearance angle | 0 ° to 8 ° |
| Radial clearance angle | - 0 ° to + 6 ° |
| Tooth height difference | any |
| Grinding wheel diameter | 80 to 100 mm |
| Working speed | up to 15 teeth / min |
| Contents of coolant tank | approx. 125 L |
| Coolant pump delivery rate | approx. 50 L / min |
| Connected load | approx. 3.7 KVA (400 V / 50 Hz) |
| Weight | approx. 900 kg |
| Dimensions L x W x H | 1537 x 1026 x 2064 mm |
| colour | Gray RAL 7045/7047 |
