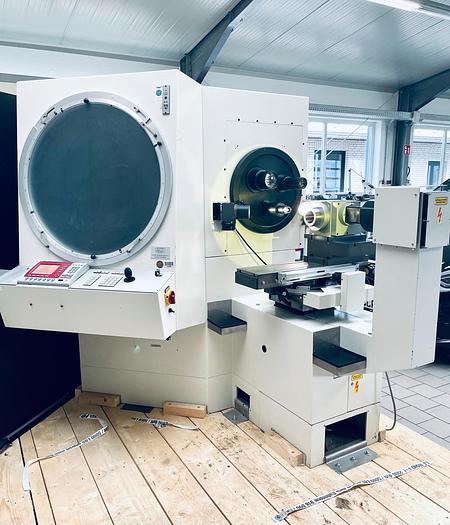

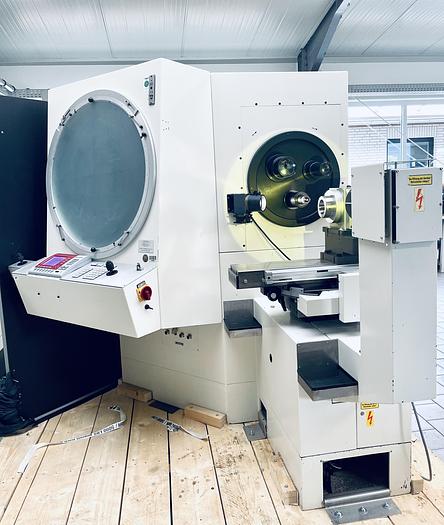

1991 Dr. Schneider ST 750
No longer available
1991 Dr. Schneider ST 750
Description

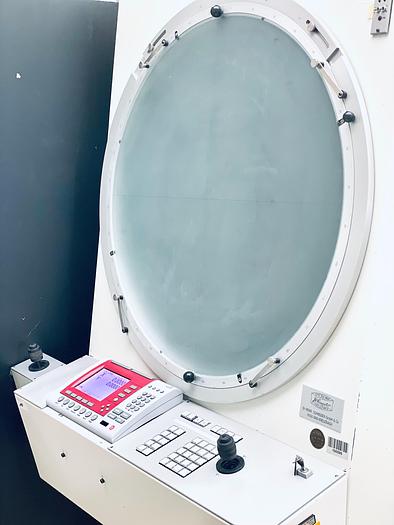

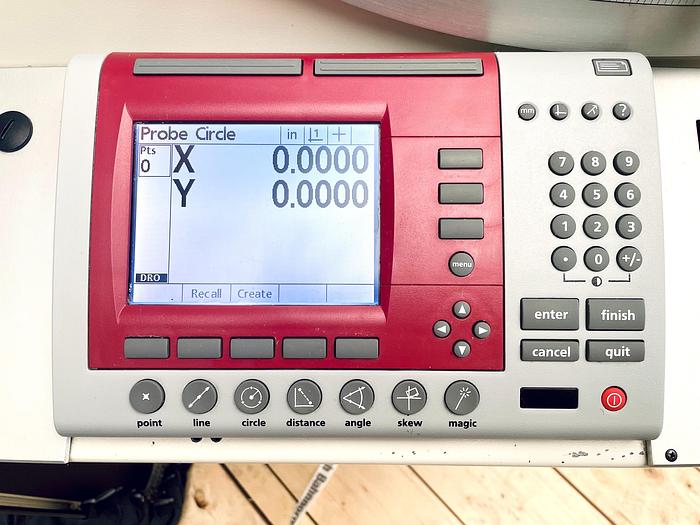

Suitable for the optical measurement of lengths, diameters and angles for all types of milling and drilling tools. Accessories: blackout device, Large monitor, rotatable with vernier for angular degrees, motorized spindle block ISO 50, Motorization of all three axes with joystick operation, with tailstock and digital display, 2-axis digital display, 3-fold turret for different lenses with magnification 10x, 20x, 50x, stencil holder.
Specifications
| Manufacturer | Dr. Schneider |
| Model | ST 750 |
| Year | 1991 |
| Condition | Used |
| Stock Number | M01692 |
| screen diameter | 750 mm |
| Table adjustment across X-axis | 600 mm |
| table load | about 200 kg |
| Table height adjustment Y-axis | 200 mm |
| enlargement | 10, 20 and 50 times |
| table adjustment | X axis |
| Stage adjustment focusing axis Z-axis | 200 mm |
| Swivel range of the upper table approx | +/- 20° |
| Connected load | 230 V/50 Hz |
| Dimensions approx. | 2600 x 1900 x 2000 mm |
| Weight approx | 1100 kg |
| colour | Grey |
