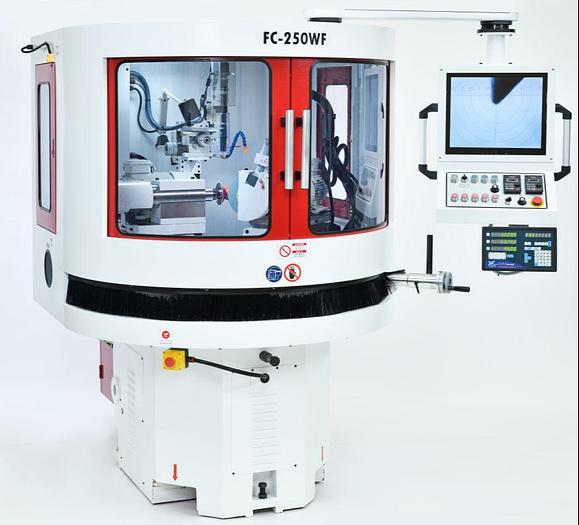

2024 Farman FC 250 WF
2024 Farman FC 250 WF
Description
Description: Suitable for dressing and profiling diamond and CBN grinding wheels. ccesories: Total enclosure.
Motor Upgrade (stronger motors for the wheel being dressed and the dressing wheel),
Wheel motor strengthened to 4 kW,
Dressing wheel motor strengthened to 2,2 kW,
2 Machine lights 12 V,
Optical linear scale with digital display counter (0,001 mm) X, Z Axes,
2/3” TV Camera with 15” LCD monitor (microscope with zoom 15‐120X included),
High performance swivelling angle reader (0,05°),
Diamond / CBN wheel spindle speed stepless adjustable 100 - 1000 rpm,
Turning speed of dressing wheel stepless adjustable 200 - 2000 rpm,
Stepless oscillation speed,
Automatic central lubrication,
SIC Wheel dresser manual,
Specifications
| Manufacturer | Farman |
| Model | FC 250 WF |
| Year | 2024 |
| Condition | Used |
| Stock Number | FC250WF |
| Grinding wheel holder: | HSK 50 E |
| Diamond grinding wheel diameter | 50 - 250 mm |
| max. width of grinding wheel | 70 mm |
| Grinding wheel bore diameter | 20 mm |
| Speed of the diamond / CBN disc spindle | infinitely variable 100 - 1000 rpm., |
| Radius of the grinding wheel | 0-30 mm |
| Dimensions of the dressing wheel | 180 x 25 x 31.75mm, |
| Speed of rotation of the dressing wheel | 200 - 2000 rpm., |
| Oscillation stroke of the dressing wheel | 0-70 mm |
| Connected load of the motor of the dressing wheel | 2,2 kW |
| Weight approx | 1400 kg |
| Dimensions L x W x H | 1850x2300x2100mm, |
