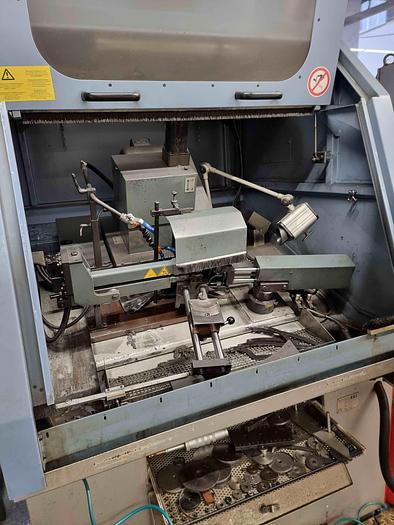

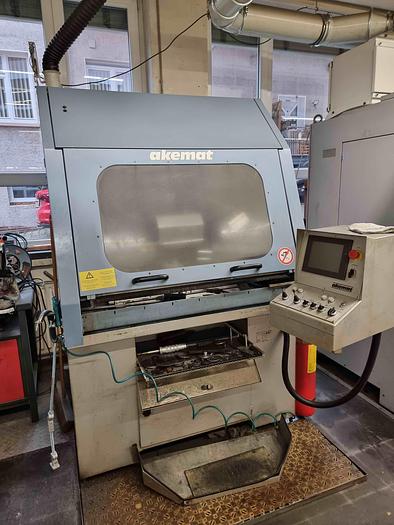

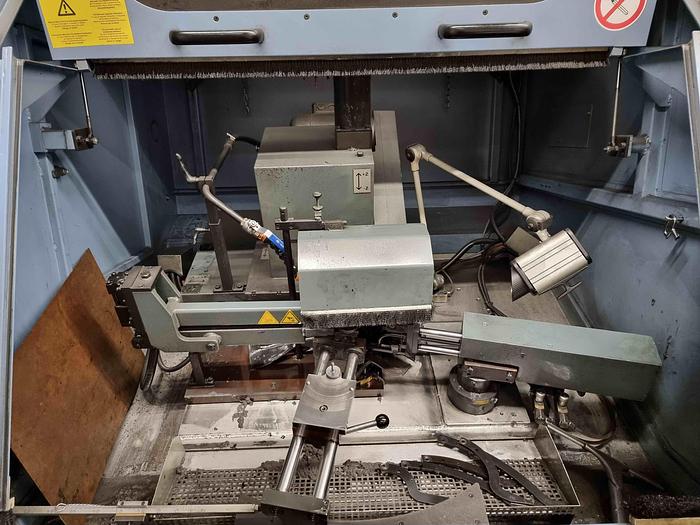

2011 Akemat U 4
No longer available
2011 Akemat U 4
Description
Suitable for automatic grinding of the tooth back on carbide-tipped circular saw blades.
Accessories:
Full cladding
Oil collecting trays.
Specifications
| Manufacturer | Akemat |
| Model | U 4 |
| Year | 2011 |
| Condition | Used |
| Stock Number | M02048 |
| Circular saw blade diameter | 80 - 850mm |
| Circular Saw Bore Diameter | from 10 mm |
| Circular saw blade cutting width | 8 mm |
| circular saw blade cutting width | up to approx. 20 mm |
| Tooth pitch | 8 - 125mm |
| Chamfer angle | up to 45 ° |
| Working speed | 8 teeth / min. |
| Grinding wheel diameter | 127 mm |
| Rake angle for saws up to 600 mm | -30° to +30° |
| Grinding wheel bore diameter | 32mm |
| Connected load approx. | 400 V / 50 Hz |
| Rake angle for saws up to 800 mm | -10° to +10° |
| mass | about 600 kg |
| Bevel tooth face | up to 30° |
| Dimensions W x D x H = | 1500 x 1300 x 1900 mm |
| colour | Gray |
