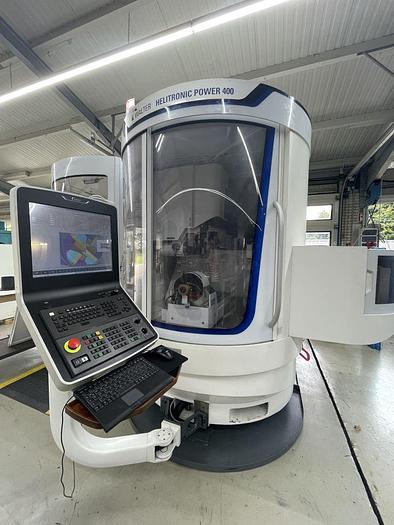

2019 Walter Helitronic Power 400

No longer available

2019 Walter Helitronic Power 400

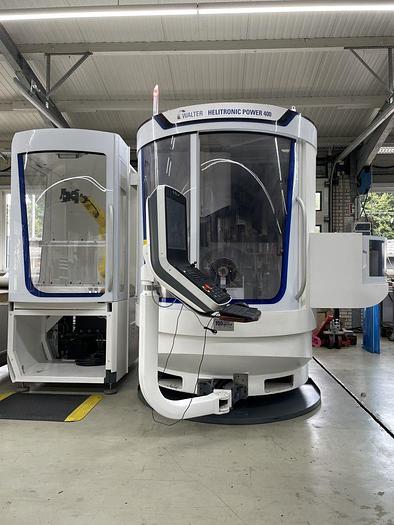

Suitable for regrinding and making new wood and metalworking tools of all kinds. Equipment: Robot loader Fanuc with 6 controlled axes, capacity up to 7500 workpieces max., Extension for robot loader, level 2 with 4 additional pallet spaces, Grinding wheel changer 8-fold, capacity up to 24 grinding wheels, Software Helitronic Tool Studio Standard & Advanced Ver 3.3, Software Toolstudio Option Profile light, Software Toolstudio Option Drills, Software Toolstudio Option Calibration Touch Probe, Software Tool Studio Option Performance Boost, Software Toolstudio option electronic referencing (eRef), Grinding head with liquid-cooled and synchronously controlled motor spindle and HSK 50 interface, Automatic, electrical measurement of the machine reference, permanently installed sharpening stone holder for opening the disc lining, electrostatic haze eliminator, automatic fire extinguishing device, glass scales on the linear axes, stepless speed control, pneumatic workpiece clamping, probe, automatic grinding wheel measurement automatic central lubrication, grinding wheel mounting device 6 loader pallets 2 x D12, 2 x D10, 2 x D8 mm, Measuring mandrel SK 50 Angle adjusting disk HSK50 automatic, 6 x coolant distributor, 8 grinding wheel holders HSK50.

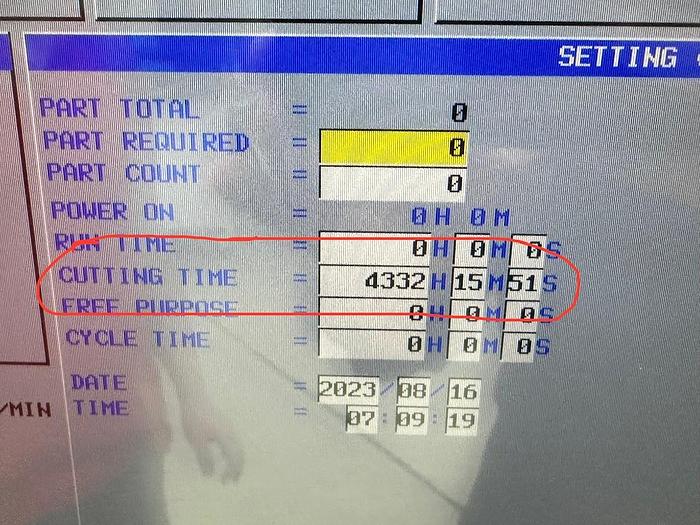

Please note: Only 4332 spindle hours in total!!


ModelHelitronic Power 400
Stock NumberM01937
X - axis longitudinal movement650 mm
Y - axis longitudinal movement350 mm
Z-axis transverse movement720 mm
C-axis swivel range+ / - 200°
Workpiece holderSK 50
Workpiece diameter3 - 315mm
Workpiece length for face machining 320mm
Workpiece length for peripheral machiningmax. 370 mm,
grinding wheel drive power22 KW
Infinitely variable grinding wheel speeds0 - 10,500 rpm,
Grinding wheel diameterMax. 200 mm
Connected load25kW (400V/50Hz)
Dimensions W x D x H3734 x 2490 x 2501 mm
massapprox. 7500 kg
colourIron gray RAL 7011 / signal white RAL 9003
