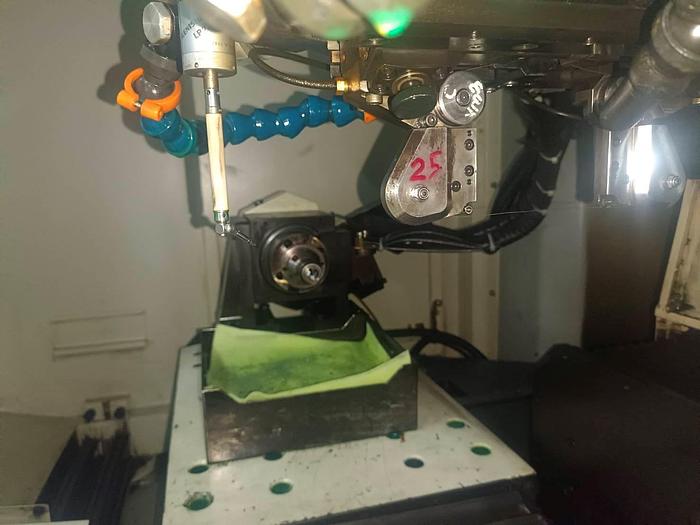

2011 Vollmer QWD 750
No longer available
2011 Vollmer QWD 750
Description
Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process.
Accessories:
Total enclosure
Cooling unit for dielectric fluid
automatic fire extinguishing system
Probe
Machine lamp
automatic central lubrication
Workpiece carrier ISO40
Extractor
Measuring mandrel SK40
Wire tension gauge
Specifications
| Manufacturer | Vollmer |
| Model | QWD 750 |
| Year | 2011 |
| Condition | Used |
| Stock Number | QWD750_2011 |
| Cutter outside diameter | Max. 320 mm |
| Shank tool diameter | 10-320 mm |
| Outside diameter disc-shaped tools | Max. 320 mm |
| Cutting length | max. 480 mm |
| Tool weight | max. 20 kg |
| X axis travel | 500 mm |
| Y-axis travel | 300 mm |
| W-axis travel | 200 mm |
| A-axis rotation range | 360 ° |
| E-axis swivel range | 180 ° |
| Required space for the machine | 2535 x 2200 x 2280 mm |
| Weight approx. | 4800 kg |
| Connected load | 5,4 kW |
| colour | gray RAL 7035/7043 |
