2006 Schmidt Tempo ECE 45 / 4
Sold
2006 Schmidt Tempo ECE 45 / 4
Description
Suitable for automatic grinding or retoothing and chamfering of HSS, segmental and VHM circular sawblades with the plunge grinding method using CBN or diamond grinding wheels.

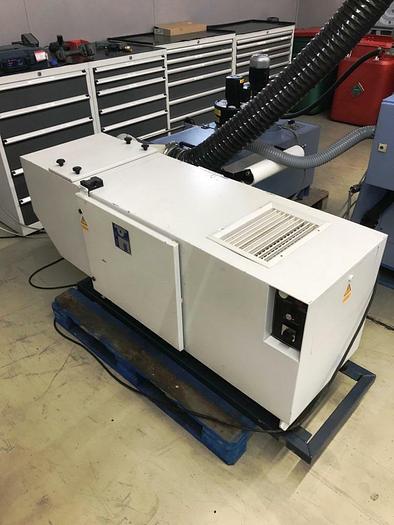

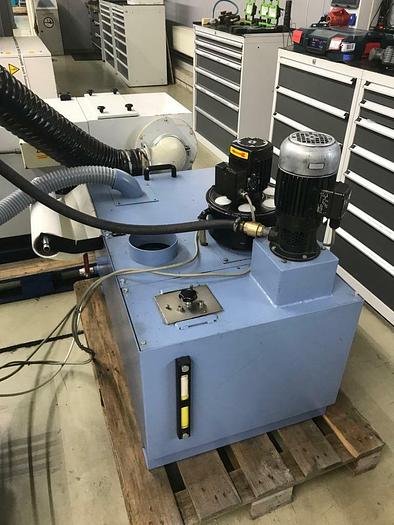

Accessories: Total enclosure, Windows CE operating system, Auitomatic hood locking mechanism, 2 additional CNC axes for fully automatic bevelling in one clamping, High-pressure coolant device with magnetic filter element 35 l / min., Automatic rake angle adjustment of the grinding head, Software programs for curved tooth, angle tooth, Automatic central lubrication, Machine light, Electrostatic mist extractor Walter WL-EF-65 Masch. Nr. 990934, power 2000m³, 0,68kW.
Specifications
| Manufacturer | Schmidt Tempo |
| Model | ECE 45 / 4 |
| Year | 2006 |
| Condition | Used |
| Stock Number | M01332 |
| Specifications | Saw dia. 20 - 550 mm, saw thickness up to 6 mm, tooth count from 20 - 999 mm, working rate stepless adjustable from 3 - 50 teeth/min, grinding wheel drive 1.8 kW, grinding wheel diameter 200 x 32 mm, connected load approx. 5 kVA (400 volts / 50 Hz), dimensions w x d x h = 1730 x 1200 x 1800 mm, weight approx. 950 kg, colour blue RAL 5014 / blue RAL 5013. |
