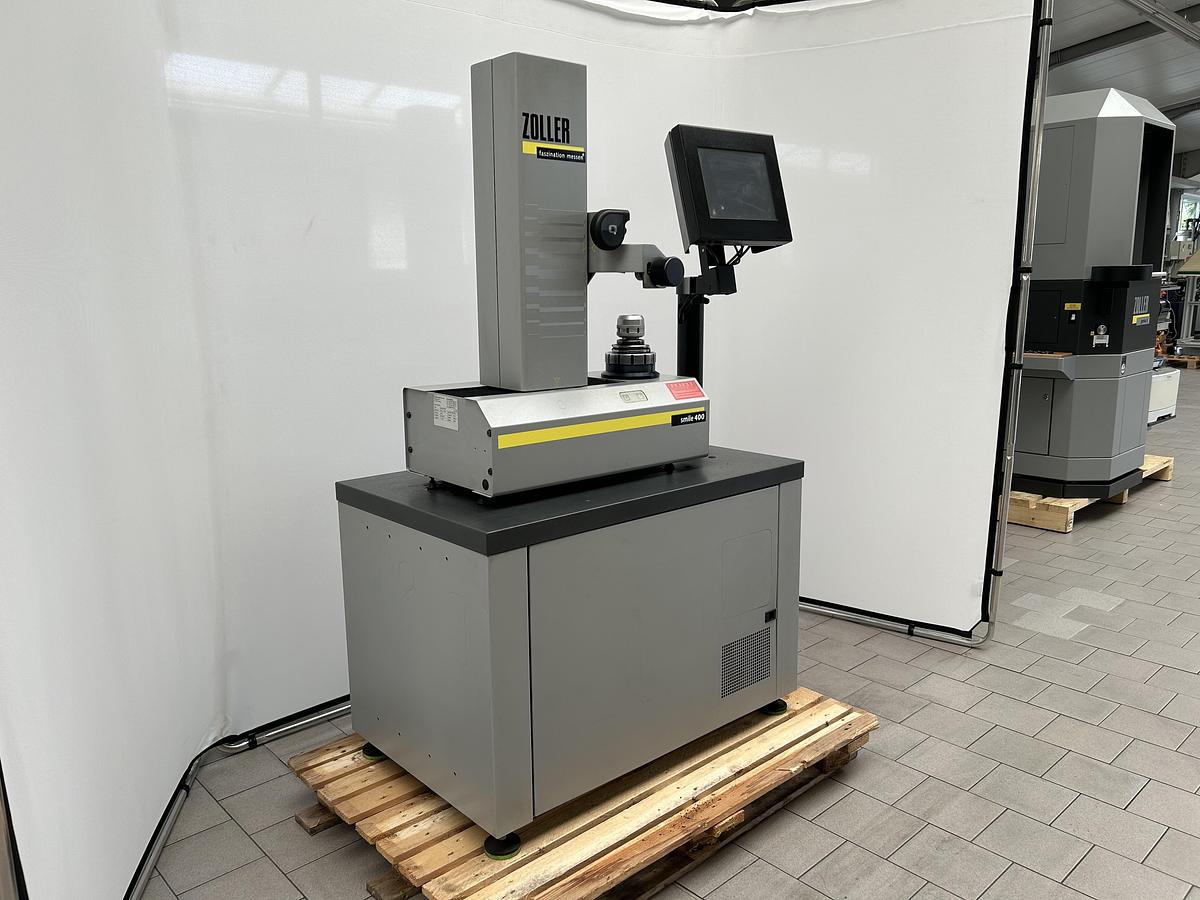

2008 Zoller Smile 400
2008 Zoller Smile 400
or
Call +49447192920
Description
Suitable for measuring and presetting all types of cutting tools as well as for measuring grinding wheel packages. The Zoller image processing saturn set incl. Camera system allows a fast and operator-independent measurement of any tool cutting edge. Accessories: Pilot 2.0 software

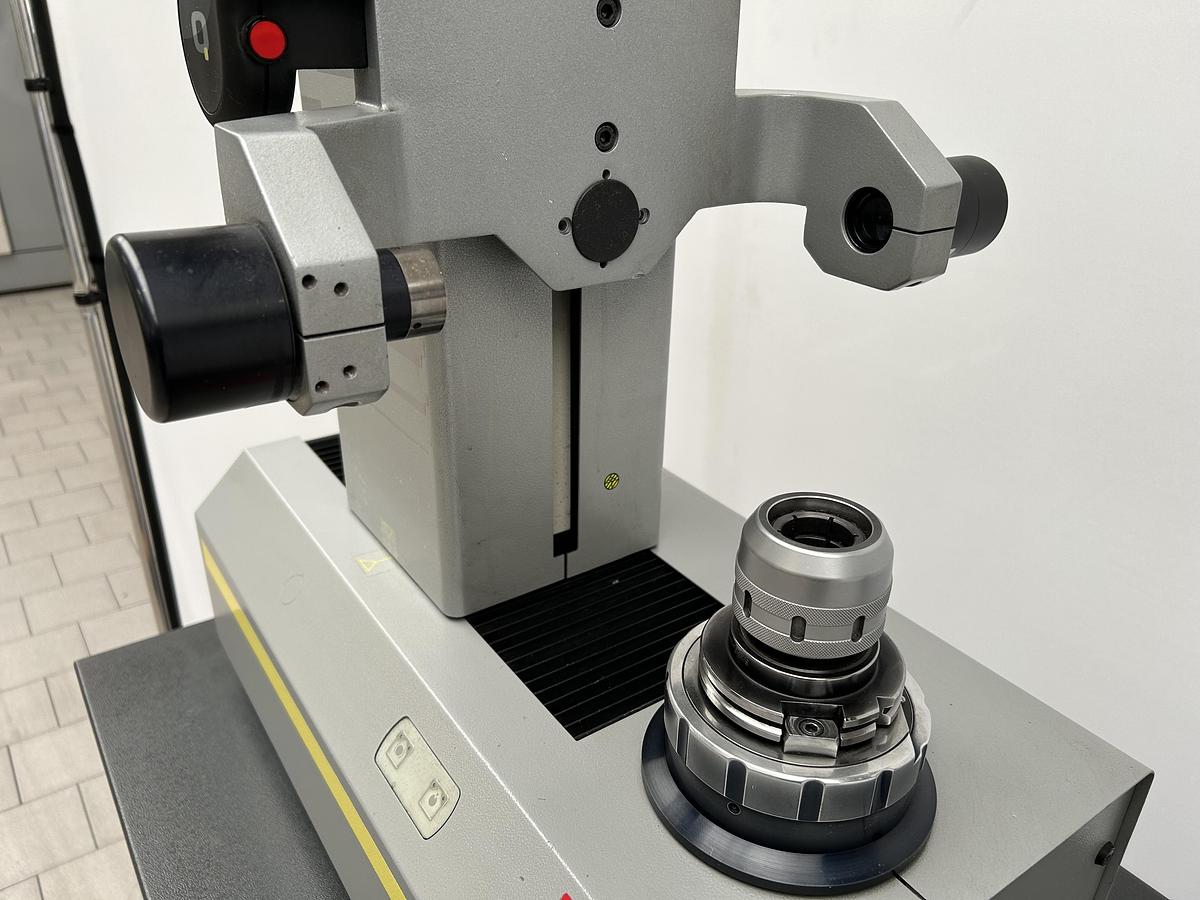

High-precision SK 50 spindle/vacuum (concentricity 0.002 mm, vacuum clamping device,
spindle brake)

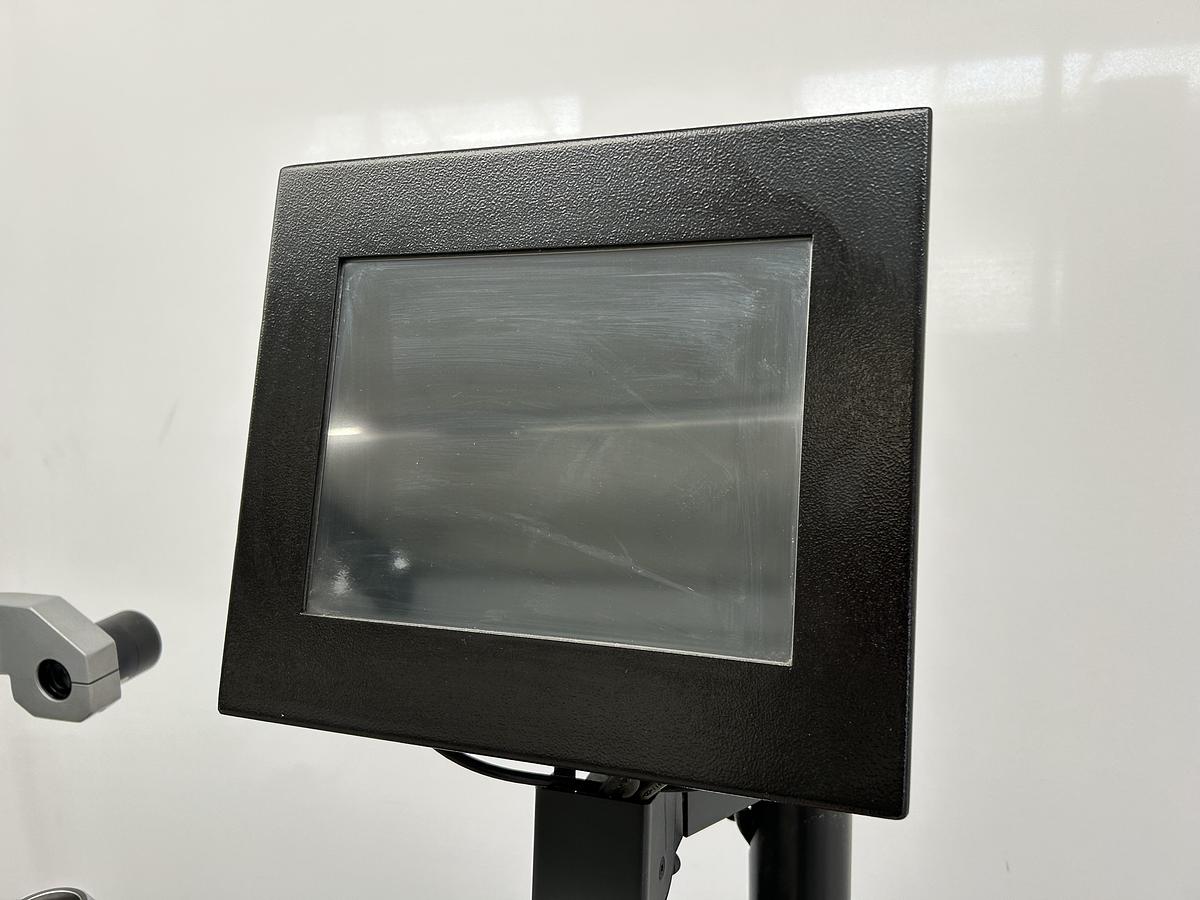

Pilot 2.0 electronics
Pilot 2 operating dialog German
Base cabinet.
Specifications
| Manufacturer | Zoller |
| Model | Smile 400 |
| Year | 2008 |
| Condition | New |
| Stock Number | M02205 |
| Z-axis travel | 420 mm |
| Traverse X-axis | 200 mm |
| Workpiece diameter | Max. 420 mm |
| Workpiece length | Max. 400 mm |
| Max. Snap gauge diameter | d = 100mm |
| Workpiece holder | SK 50 |
| Tool weight | Max. 10 kg |
| Repeatability | +/- 0.002 mm, |
| Display accuracy | 0.001 mm |
| Concentricity | 0,005 mm |

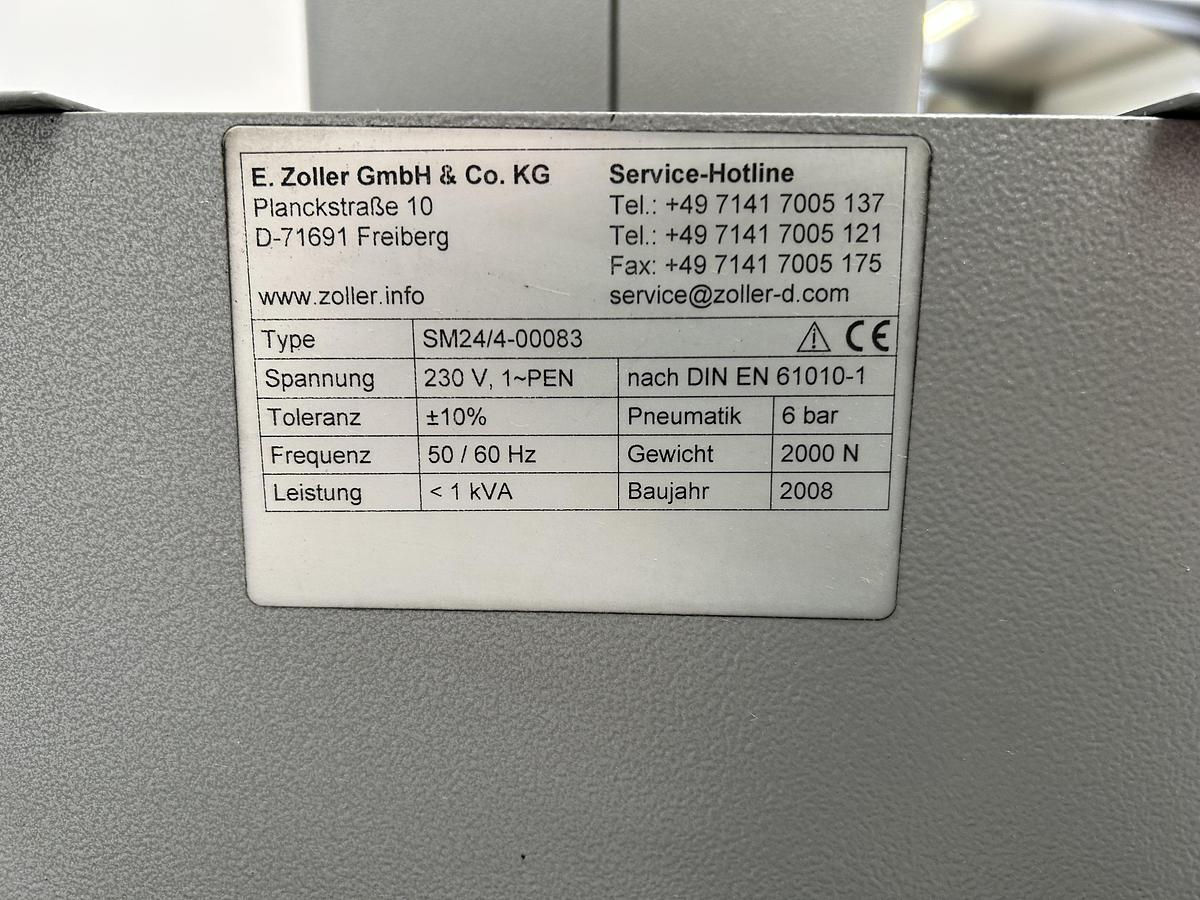

| Connected load | 230 V / 50 Hz |
| Compressed air connection | approx. 6 bar |
| Dimensions W x D x H | 1300 x 625 x 1600 mm |
| Weight | approx. 200 kg |
| colour | silver gray / anthracite |
