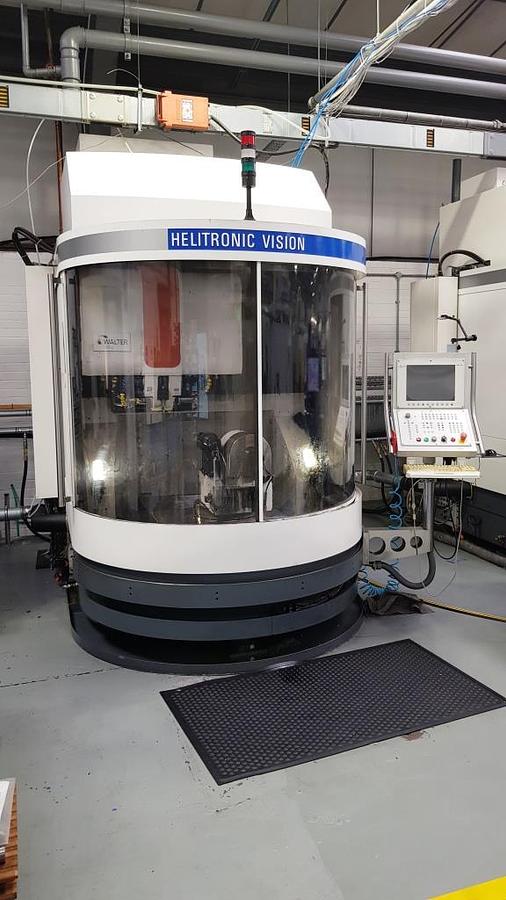

2007 Walter Helitronic Vision

2007 Walter Helitronic Vision
Description
Suitable for regrinding and remaking all types of wood and metalworking tools. Accessories: HMC 600 XP control system,
Toolstudio Standard & Advanced 3.0
Toolstudio Options Steptools,
Toolstudio Options Dressing,
Toolstudio Options Flexprog,
Toolstudio Options Network,
Software Package 1 (cylindrical tools with sharp edges, corner and full radius),
Software Package 2 (conical-spiral tools with sharp edges, corner and full radius),
Software Package 3 (drills and step drills),
Software Package 7 (contours),
Software Package 15 (segment seats),
Software Package 16 (warm-up program),
Software Package 18 (dressing),
Software Package 27 (flexible programming),
Measuring probe,
Pneumatic workpiece clamping,
Automatic central lubrication,
Electrostatic mist extractor,
Oil collecting tray,
2 grinding wheel flanges.
Specifications
| Manufacturer | Walter |
| Model | Helitronic Vision |
| Year | 2007 |
| Condition | Used |
| Stock Number | M02220 |
| Longitudinal movement (X-axis) | 480 mm |
| Y axis vertical movement | 320 mm |
| Y-axis vertical movement | 320 mm |
| Z – axis transverse movement | 700 mm |
| Z-axis transverse movement | 700 mm |
| Rotary table swivel range C-axis | +/- 200 ° |
| Workpiece carrier holder | ISO 50 |
| Max. Workpiece diameter | 320 mm |
| Round table swivel range C-axis | +/- 200 ° |
| Workpiece length for face machining | 300 mm |
| Diameter of the grinding wheel | 200 mm |
| Grinding spindle speed | 0 - 12,000 rpm, |
| workpiece length | Peripheral grinding 370 mm |
| workpiece holder | ISO 50 |
| Top performance | 30 kW |
| Workpiece length | Circumferential grinding 370 mm |
| Connected load | 35 kW (400 V / 50 Hz) |
| Weight approx | 7,400 kg |
| Dimensions L x W x H | 2790 x 2490 x 2301 mm |
| diameter of the spindle | 100 mm |
| colour | grey RAL 7035 / 7043 |
| radial resolution | 0.0001° |
| Diameter of the spindle | 100 mm |
| diameter of the grinding wheel | 200 mm |
| accuracy linear resolution | 0.0001 mm |
| grinding spindle speed | 0 - 12,000 rpm, |
