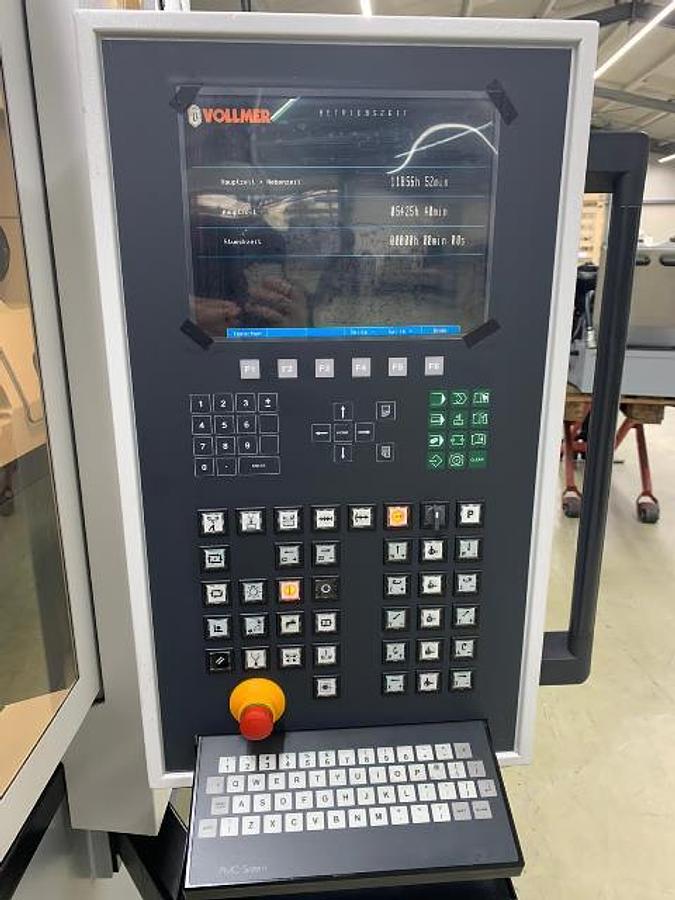

2014 Vollmer QWD 760 H
2014 Vollmer QWD 760 H
or
Call +49447192920
Description
Suitable for the automatic machining of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process.
Accessories: Total enclosure
Integrated loading system and tool magazine Automatic machining of up to 12 HSK 63 tools
Program for erosion across the tool center at the cutting edge and for free erosion
Hardware and software for DNC service
Gripper fingers for workpiece automation SK40/HSK63-A,E/HSK63-B,F
Adaptation to the A-axis on HSK63-A,E including 25 mm diameter test mandrel (HSK63 A,E system)
Grinding mist extraction N 181
Cooling unit for dielectric fluid
Automatic fire extinguishing system
Measuring probes
Machine lamp
Automatic central lubrication
Specifications
| Manufacturer | Vollmer |
| Model | QWD 760 H |
| Year | 2014 |
| Condition | Used |
| Stock Number | M02320 |
| Cutter outside diameter | Max. 250 mm |
| Cutting length | Max. 260 mm |
| Shank tool diameter | 10-250 mm |
| Tool weight | Max. 20 kg |
| traverse | X-axis 275 mm |
| Y-axis travel | 300 mm |
| W-axis travel | 200 mm |
| Rotation range A-axis | 360 ° |
| tool holder | ISO 50 |
| E-axis swivel range | 120 ° |
| Dimensions machine | W x D x H = 2535 x 2200 x 2280 mm |
| Weight | about 4500 kg |
| Connected load | 4.5 kW (400 V / 50Hz) |
| colour | telegrey RAL 7045/7047 |
