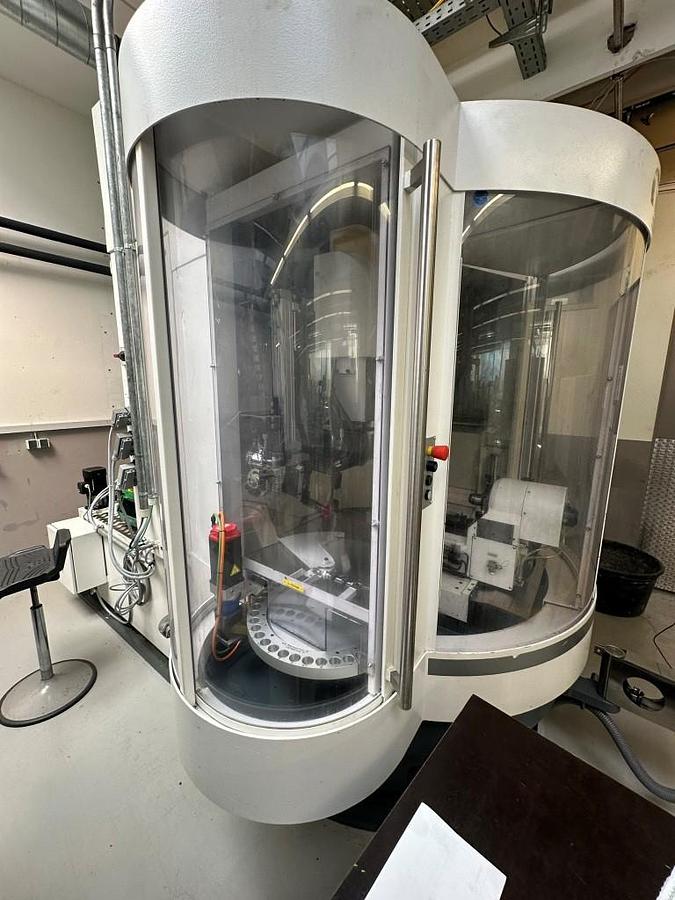

2009 Walter Helitronic Power Diamond
2009 Walter Helitronic Power Diamond
Description
Suitable for eroding PKD tools for the wood and metal industry as well as for resharpening and reproducing wood and metal cutting tools of all kinds.
Accessories:
Total enclosure
Disc loader for tools Ø 3-32 mm
8-station grinding wheel changer with coolant flushing system
Toolstudio Standard & Advanced software package
Toolstudio Option Erosion,
Software Package 1 (cylindrical tools, sharp-edged, corner and full radius),
Software Package 2 (conical-spiral tools, sharp-edged, corner and full radius)
Software Package 3 (drills)
Software Package 16 (warm-up program),
Software Package 18 (dressing)
Software Packages 51 and 52 (rotary EDM and PCD tools such as end mills, circular milling cutters, profile cutters, step cutters, etc.),

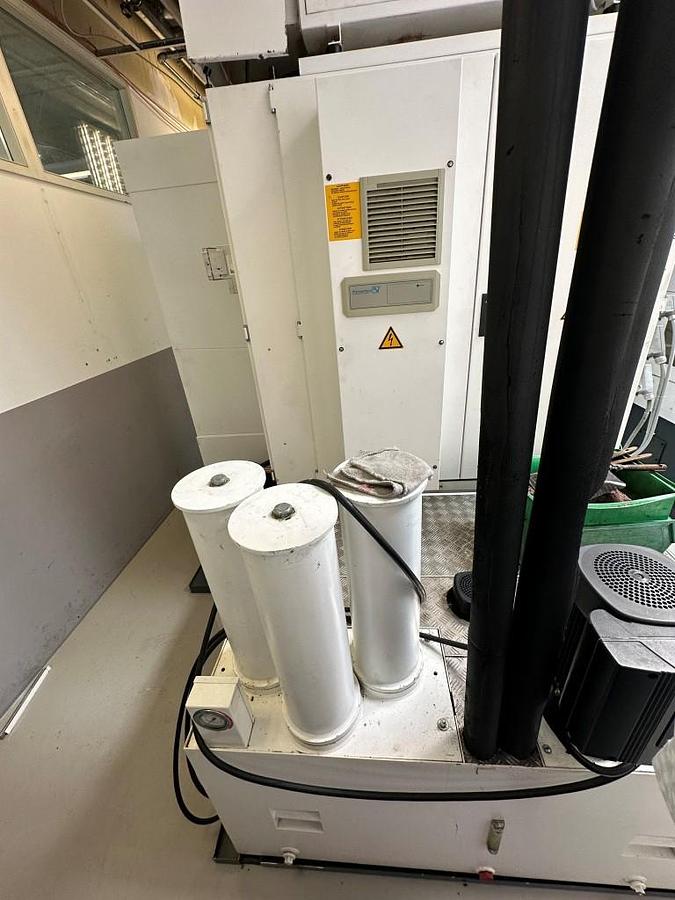

Electrostatic mist extractor with silencer
Grinding spindle with direct motor drive
Cooling unit for the grinding spindle
Measuring probe
Glass scales on the linear axes
Stepless variable speed control
Automatic central lubrication
Automatic fire extinguishing system
Oil drip tray
400 L coolant system with pump - with integrated Vomat fine filter system EFW 100
Specifications
| Manufacturer | Walter |
| Model | Helitronic Power Diamond |
| Year | 2009 |
| Condition | Used |
| Stock Number | M02317 |
| X – axis longitudinal movement | 470 mm |
| Y-axis vertical movement | 320 mm |
| Z – axis transverse movement | 660 mm |
| C-axis swivel range | + / - 200° |
| Maximum workpiece diameter | 320 mm |
| Workpiece holder | ISO 50 |
| Workpiece length during end milling | 280 mm |
| Workpiece length for circumference machining | 350 mm |
| Grinding spindle speed infinitely variable | 0 - 9500 rpm |
| Drive power grinding spindle | 14,5 kW |
| Grinding wheel diameter | 200 mm max. |
| Connected load approx. | 400 V / 50 Hz / 25 kVA |
| Dimensions W x D x H approx. | 3530 x 2930 x 2083 mm |
| Weight approx | 4600 kg |
| colour | signal white RAL 9003 / Iron gray RAL 7011. |
