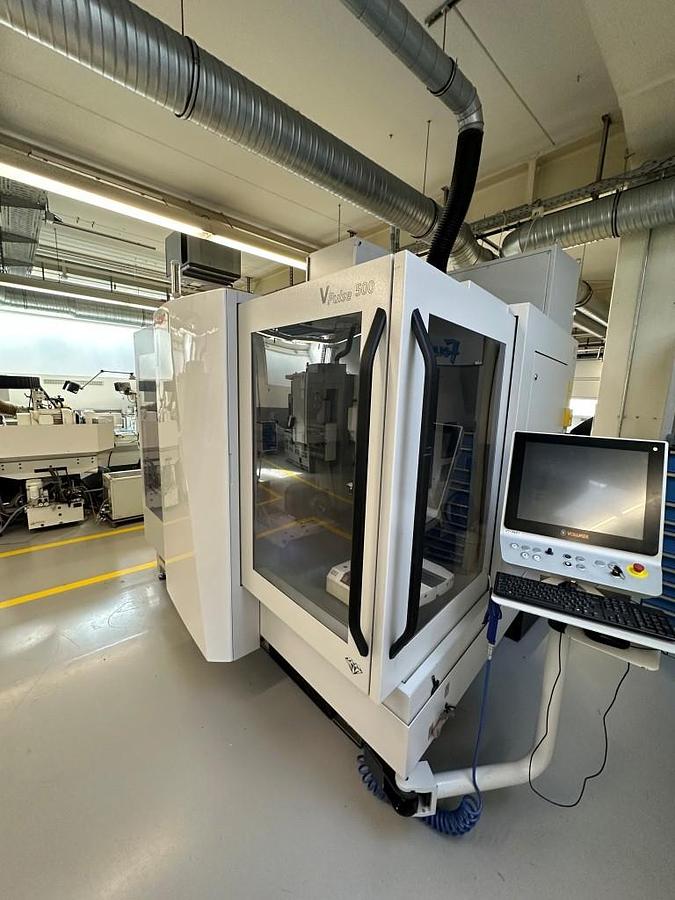

2021 Vollmer Vpulse 500
2021 Vollmer Vpulse 500
or
Call +49447192920
Description
Suitable for the complete machining of rotationally symmetrical workpieces with cutting edges made of ultra-hard cutting materials. The workpieces can be picked up on the fly or between the centres (option).
Accessories:
Total enclosure

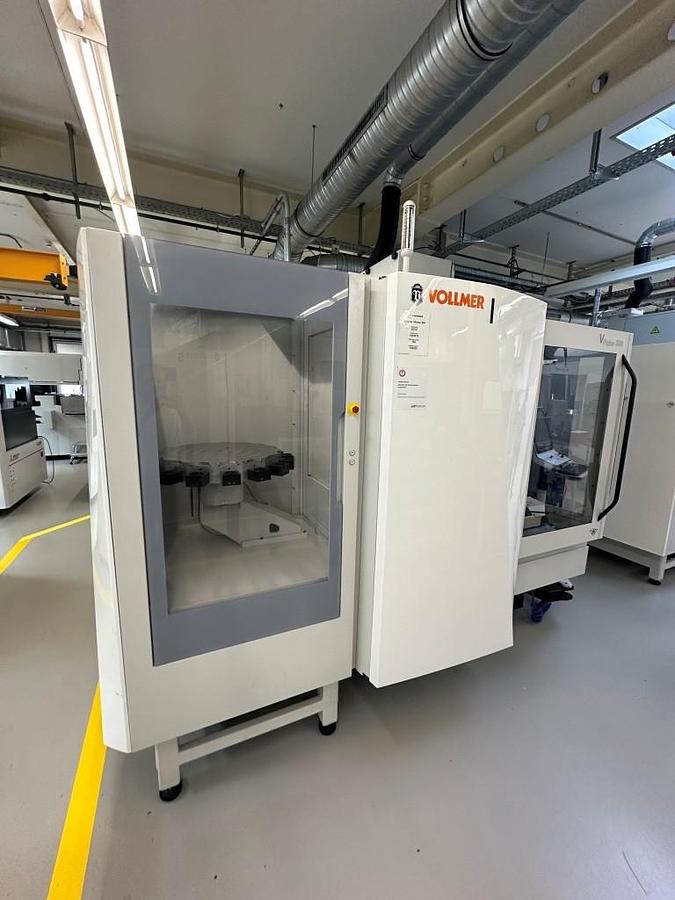

HR workpiece magazine (round magazine) for up to 16 workpieces up to 130 mm in diameter, 20 kg, or up to 8 workpieces up to 230 mm in diameter, 20 kg.
Magazine disk for 16/8 HSK63-A,E workpieces with a diameter of 130/230 mm, up to 20 kg.
Adapter to the A axis for HSK63-A,E.
Automatic fire extinguishing system.
N282 extraction system with 600 m³/h air flow.
Automatic cover flap.
Automatic central lubrication.
Measuring probe.
Cooling unit for dielectric fluid including cooling unit.
HSK-A63 test mandrel.
Specifications
| Manufacturer | Vollmer |
| Model | Vpulse 500 |
| Year | 2021 |
| Condition | Used |
| Stock Number | M02325 |
| Workpiece diameter | up to 320 mm |
| workpiece length | up to 500 mm |
| workpiece weight | up to 25 kg |
| Holding mandrel | SK 50 |
| Wire diameter | 0.1 - 0.25 mm |
| Travel path X1-axis | 535 mm |
| Travel stroke Y1 axis | 300 mm |
| Travel stroke Z1-axis | 195 mm |
| Travel stroke A1--axis | 360 ° |
| Travel stroke C1-axis | 180 ° |
| Connected load approx. | 5 kVA (400 V / 50 Hz) |
| weight | 4100 kg |
| Dimensions W x D x H approx. | 2549 x 3163 x 2709 mm |
| colour | RAL 7047 telegray 4, RAL 7045 telegray 1. |
