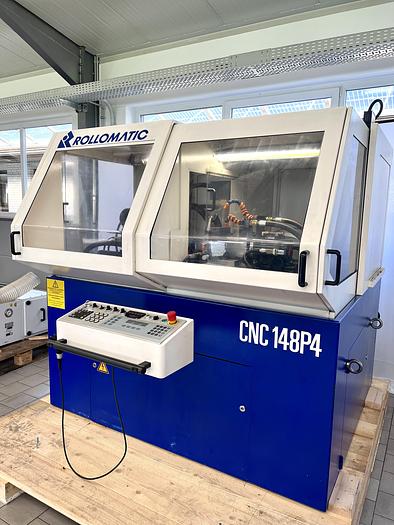

2003 Rollomatic CNC 148 P4
No longer available
2003 Rollomatic CNC 148 P4
Description
Suitable for peeling and plunge grinding of workpieces on round blanks such as cutting tools or punches.
Accessories:
Total enclosure,

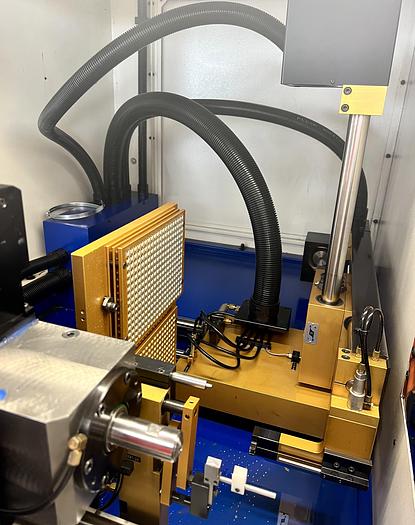

Loading and unloading robot,
PC with grinding software,

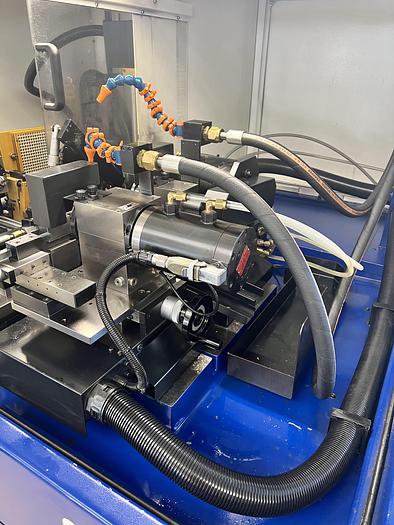

Tool spindle for W15 collets,

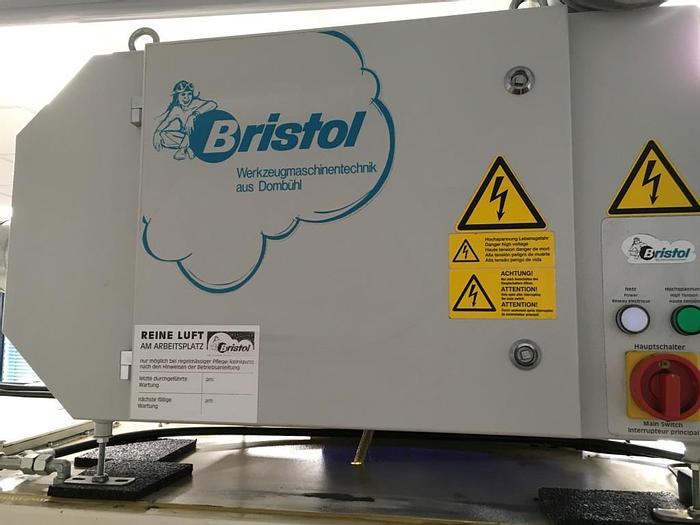

Mist extractor
2 base plates,
2 grinding wheel holders with used dia. Grinding wheels,
2 loader pallets.
Specifications
| Manufacturer | Rollomatic |
| Model | CNC 148 P4 |
| Year | 2003 |
| Condition | Used |
| Stock Number | CNC148P4 |
| Workpiece diameter for manual loading and unloading | 0.025 -12.7 mm |
| overall length | 30 - 200 mm |
| Z-axis travel | 35 mm |
| Traverse X-axis | 25 mm |
| Y-axis travel | 286 mm |
| U axis travel | 15 mm |
| Grinding wheel diameter | 200 mm |
| Roughing motor | 1,5 kW |
| Finishing motor | 0,75 kW |
| directly driven grinding spindle with integrated cooling | Ø 100 mm |
| Workhead motor | 0,70 kW |
| number of revolutions | 300 - 3000 rpm., |
| Dimensions L x W x H | approx. 1830 x 2040 x 2100 mm |
| Weight approx. | 1800 kg |
| Connected load | (400 V / 50Hz) |
| colour | blue RAL 5002 / white RAL 9010. |
